GA20H

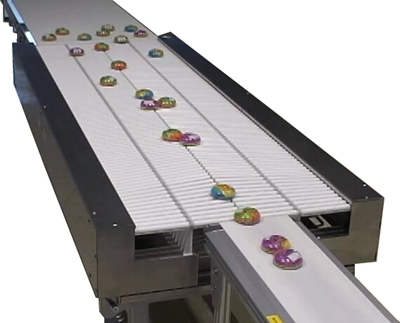

Randomly flowing transported objects are aligned in a single row in the center of the belt due.
Overview

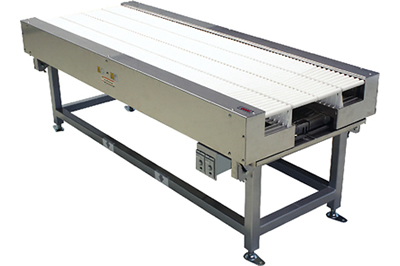

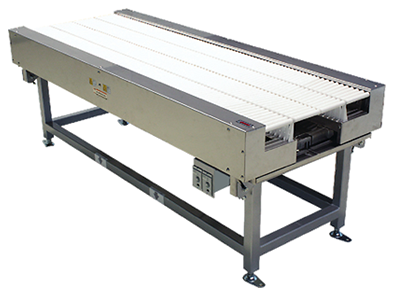

Product appearance

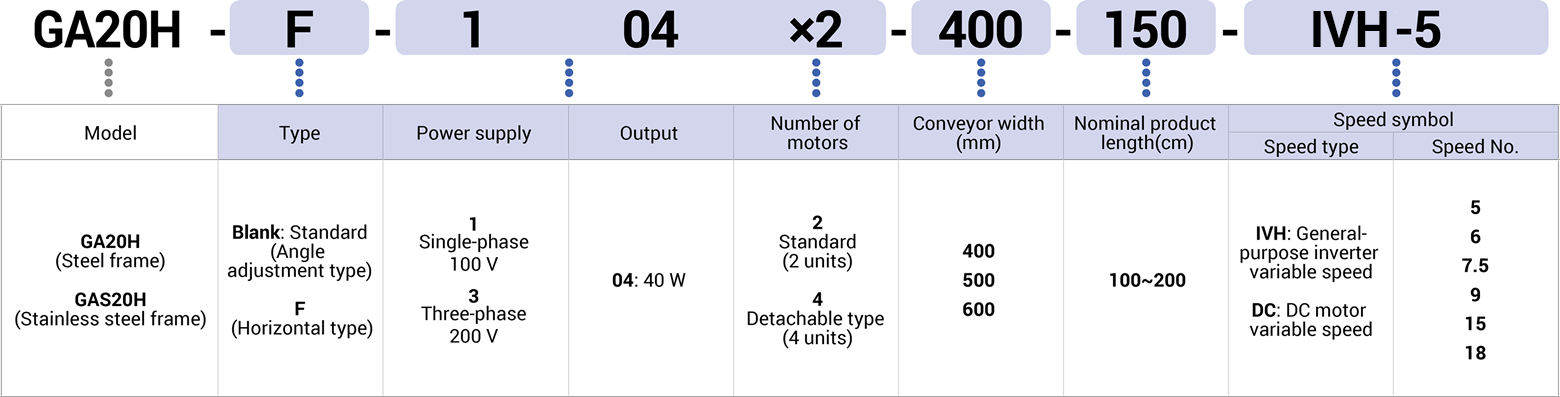

Key to model number designations
Note:
Speed number * can only be set for DC motor variable speed.

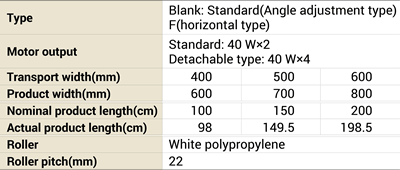

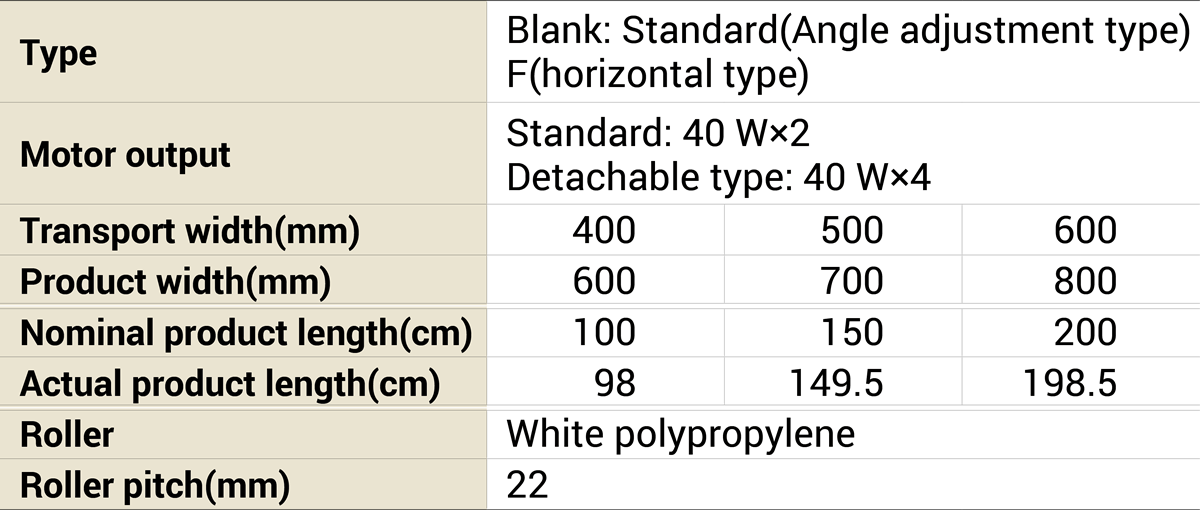

Specifications
Note:
The alignment conveyor may or may not be able to transport the objects depending on the shape and weight of the transported objects and the transportation conditions.
Consult our sales representative when ordering.

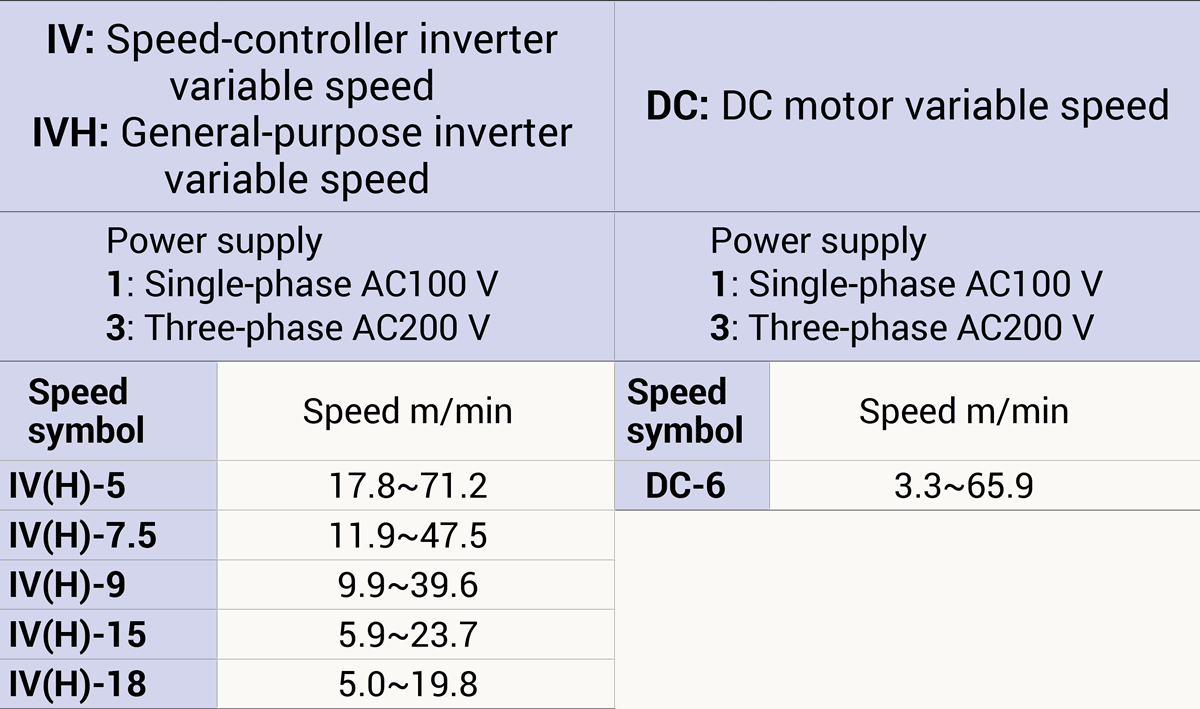

Power supplies and speeds
Note:
(1) Indicated speed is a calculated value and may decrease by a maximum of about -10% depending on the load conditions.
(2) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

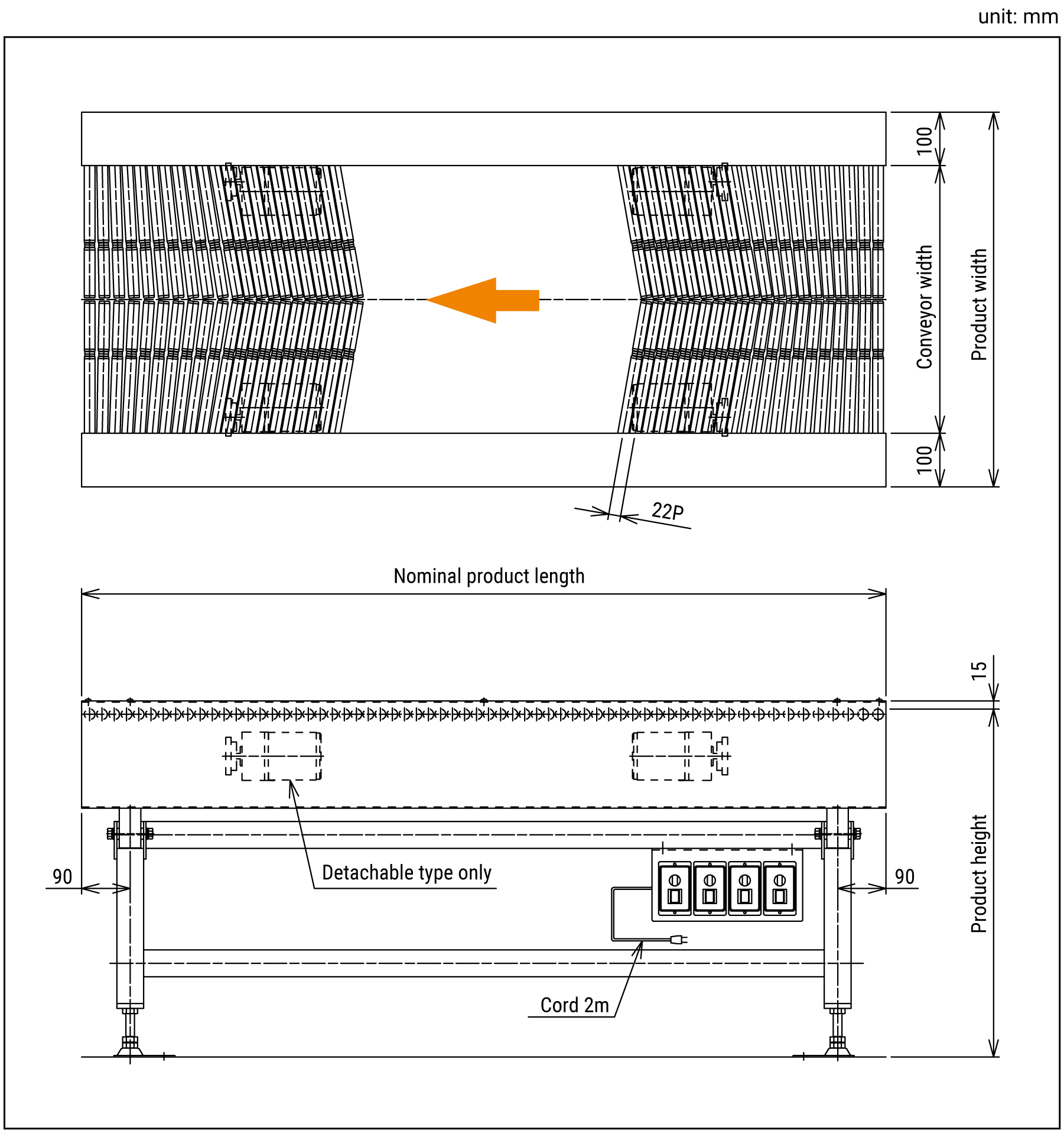

Dimensions

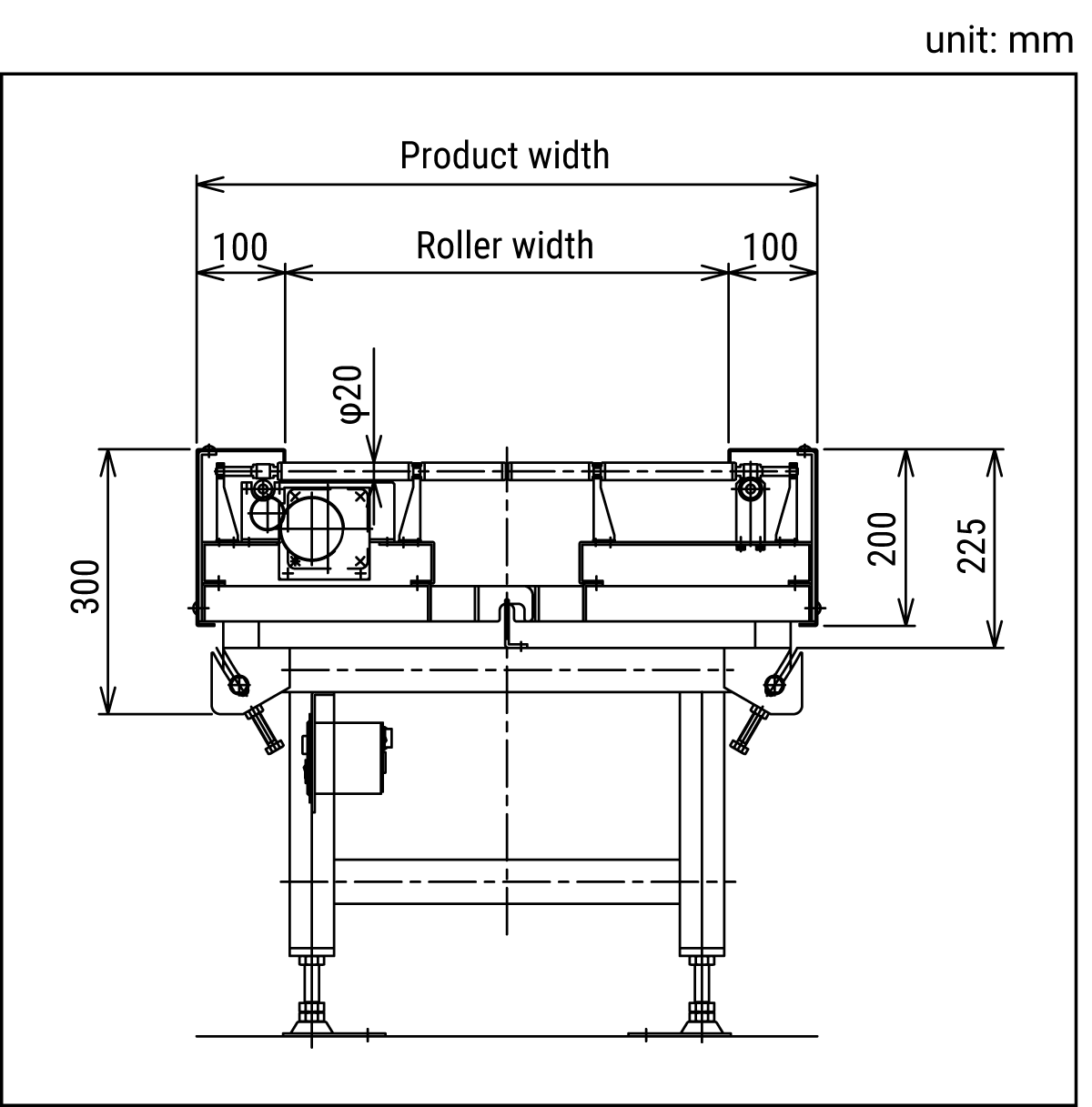

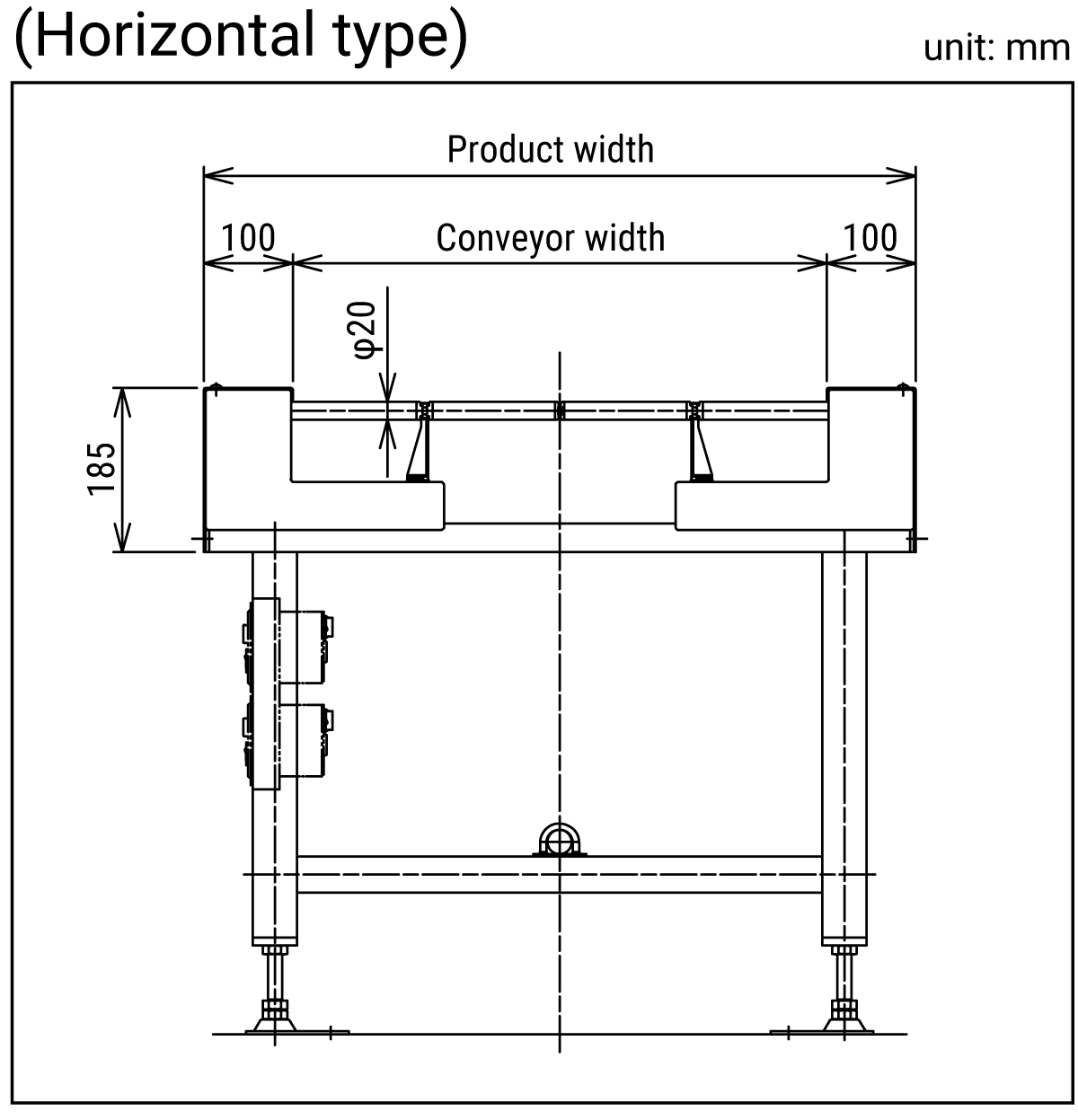

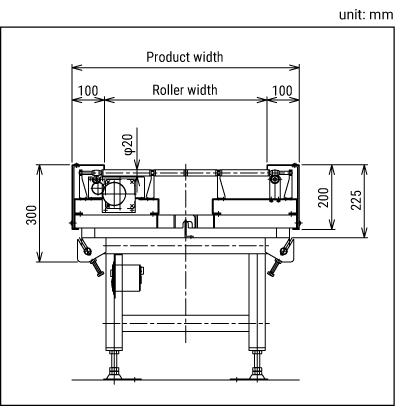

Cross-section
