MIT2

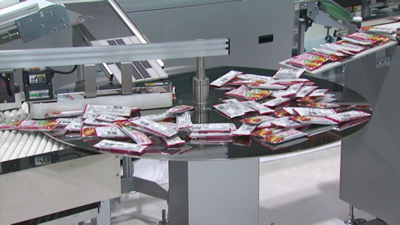

The table rotates. A standardized table with a diameter of 500 mm - 1,200 mm can be laid out as a pool yard of the assembly line.
Overview

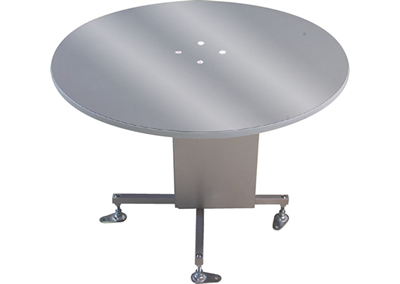

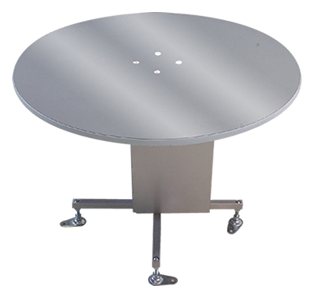

Product appearance

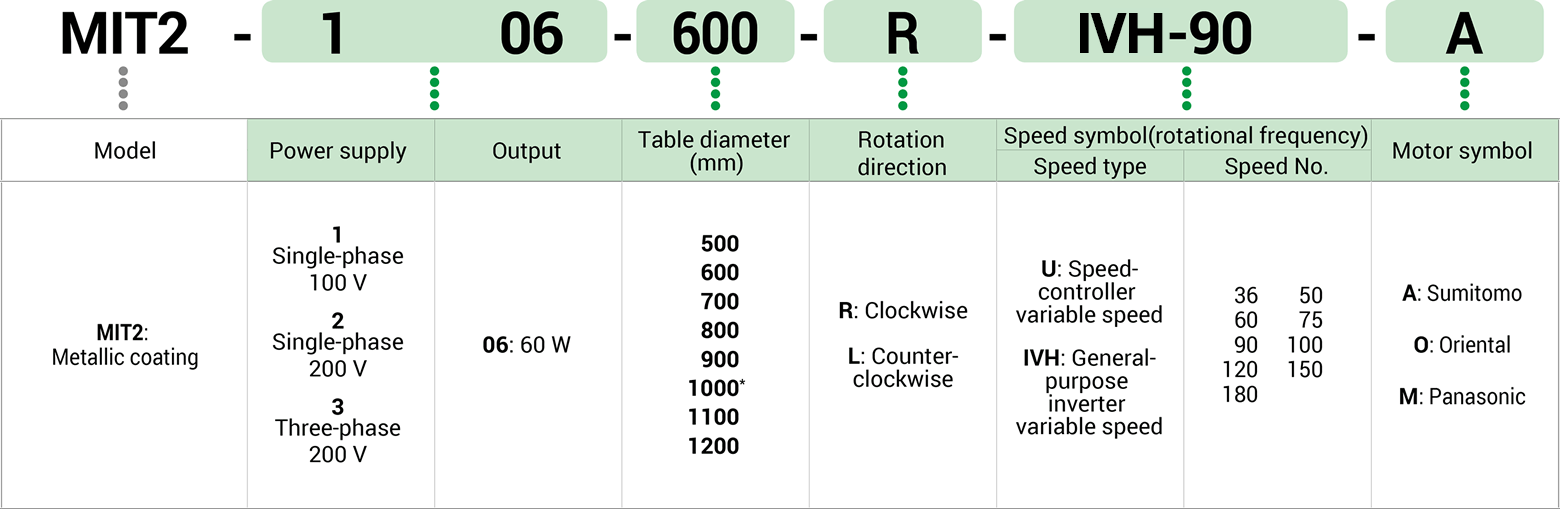

Key to model number designations
Note:
* If the table diameter is 1,000mm, the actual table diameter will be 994 mm.

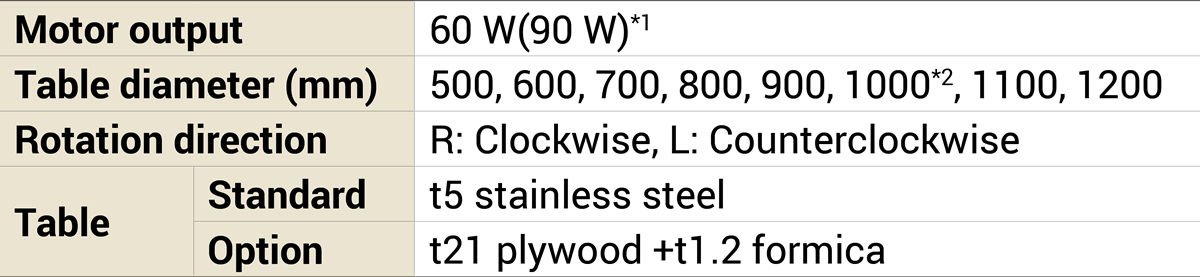

Specifications
Note:
1) *1 90 W can be fitted upon request.
2) *2 If the table diameter is 1,000mm, the actual table diameter will be 994 mm.
Transport weight
Transport weight: 20 kg/unit Avoid concentrated loads.

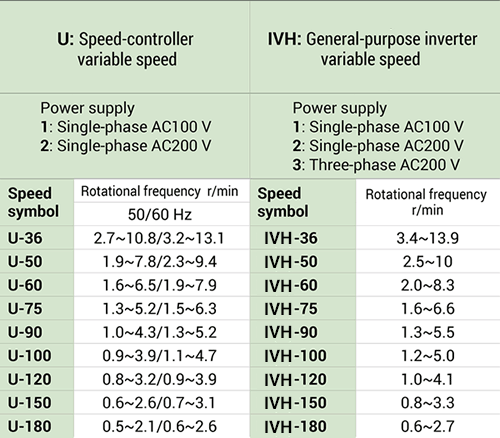

Power supplies and speeds
Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

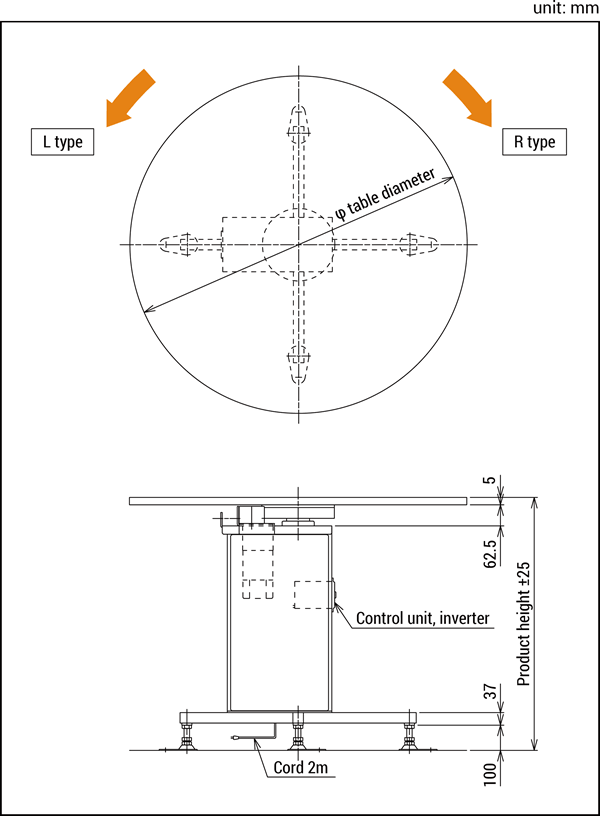

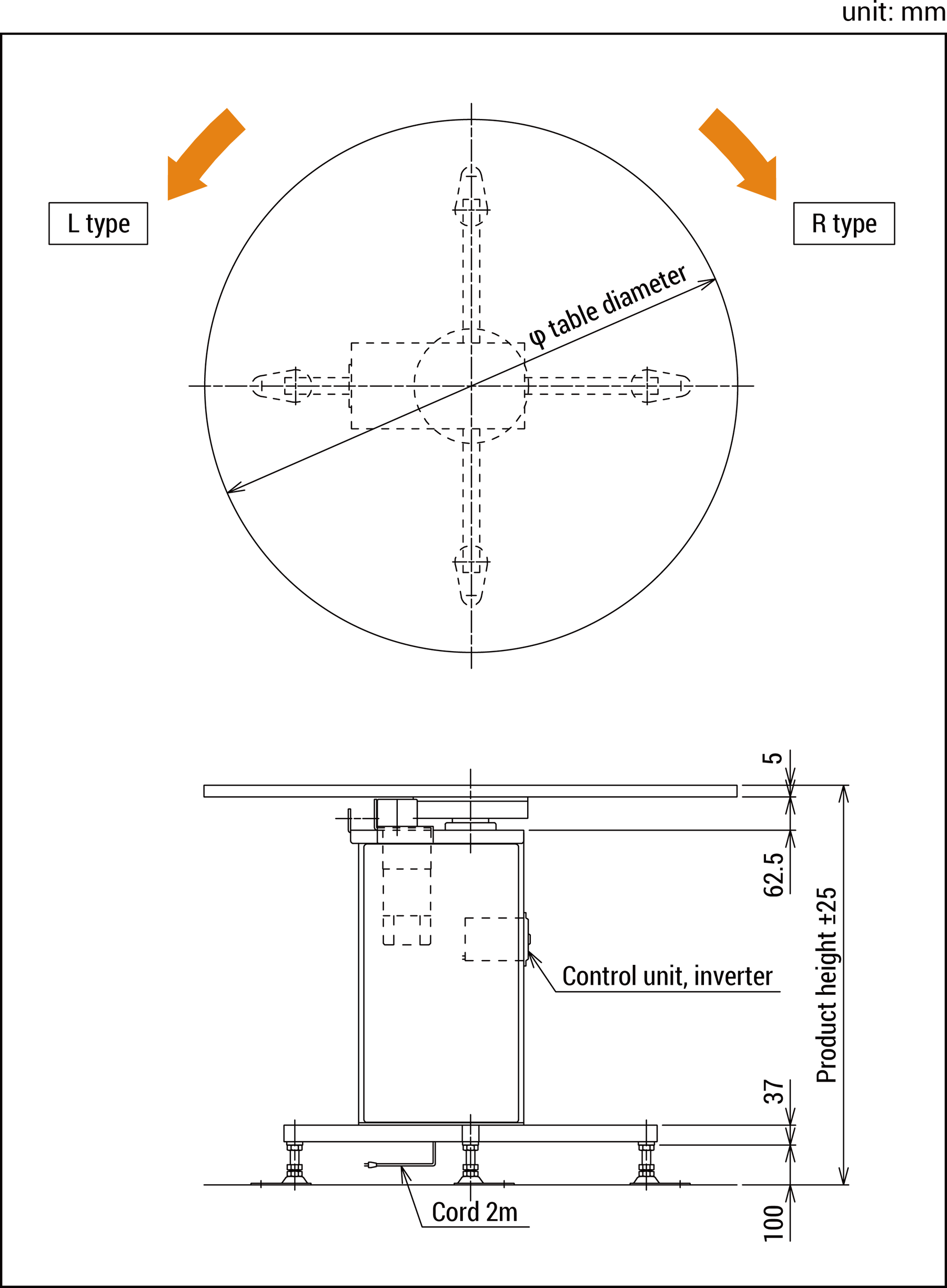

Dimensions
