MMX2
A standard model supporting many different production sites.
Overview

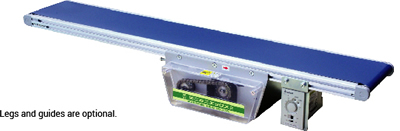

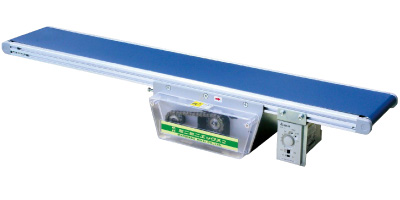

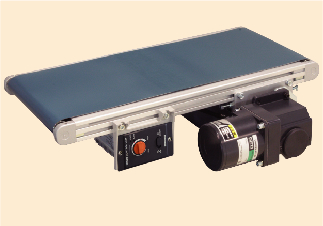

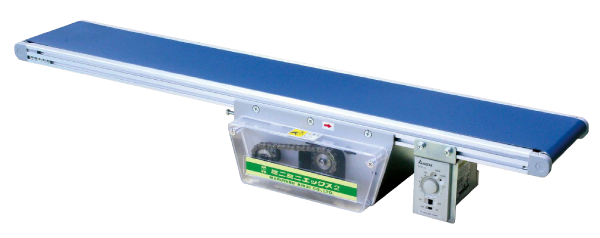

Product appearance

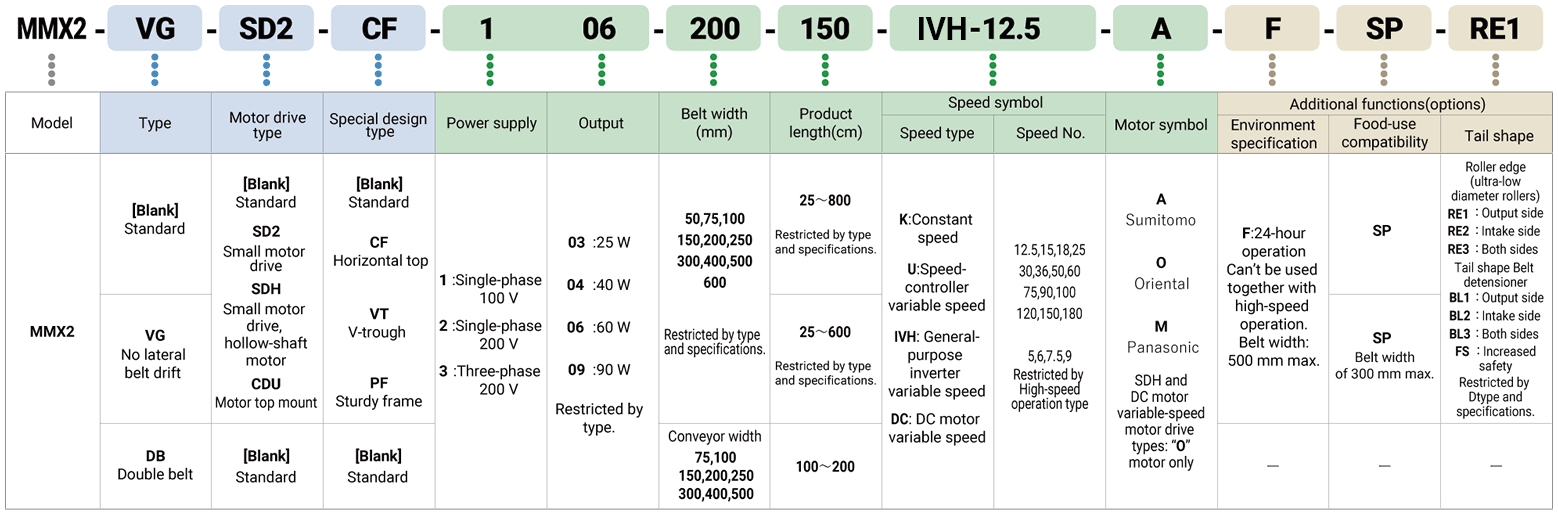

Key to model number designations
Note:
(1) When no symbol applies or no appended symbol is needed, the symbol and the hyphen (-) before it are omitted.
(2) The model designations shown here are for the purpose of illustrating the symbols, and in some cases may denote models that do not actually exist.
(3) See the options page for information on the belt detensioner.

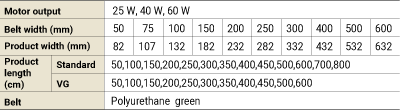

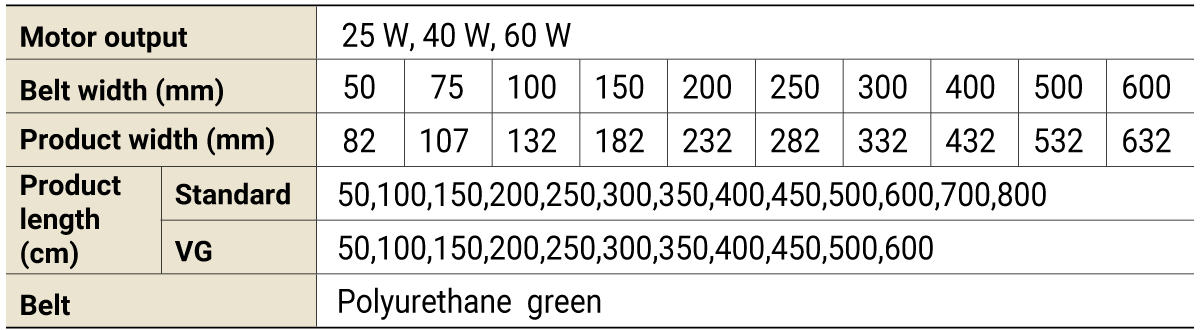

Specifications
Note:
Use 50% of the value for the standard type as the guideline value for the VG type's conveyor payload.

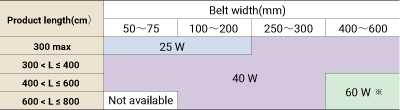

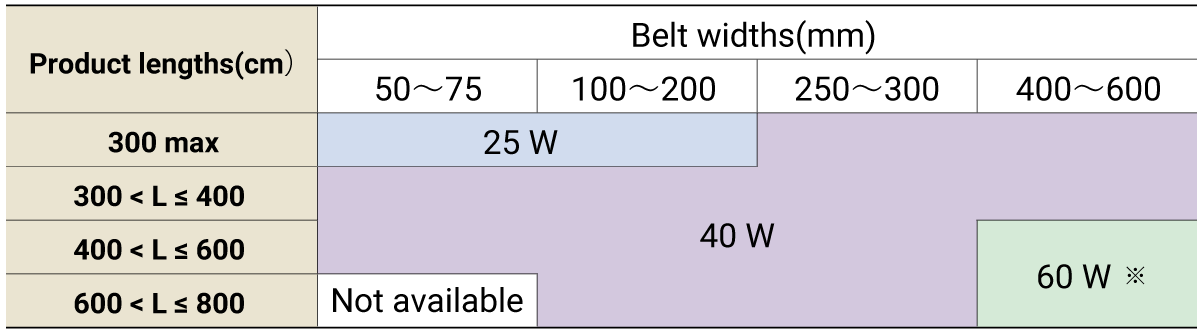

Standard motor output selections
Note:
*DC motor variable speed models are Can't be available for 60W

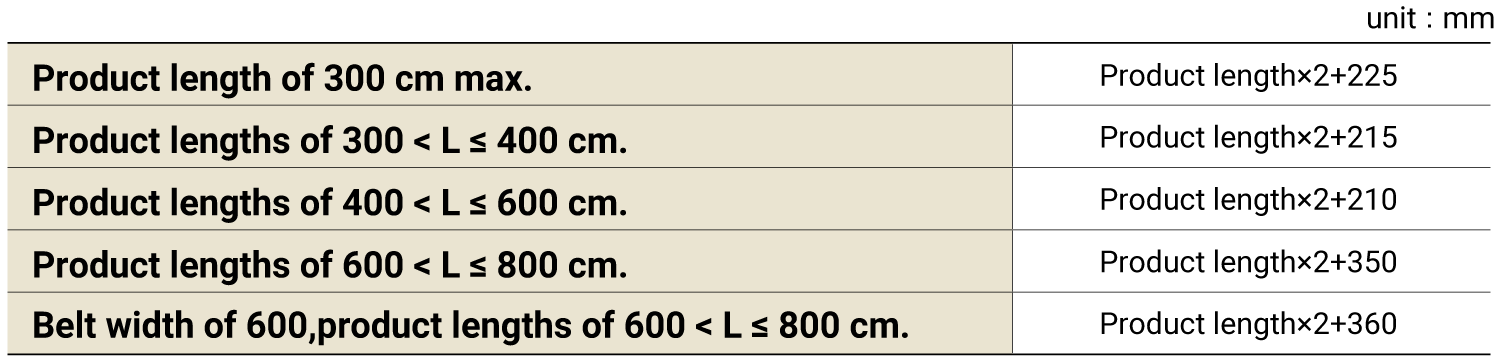

Belt lengths

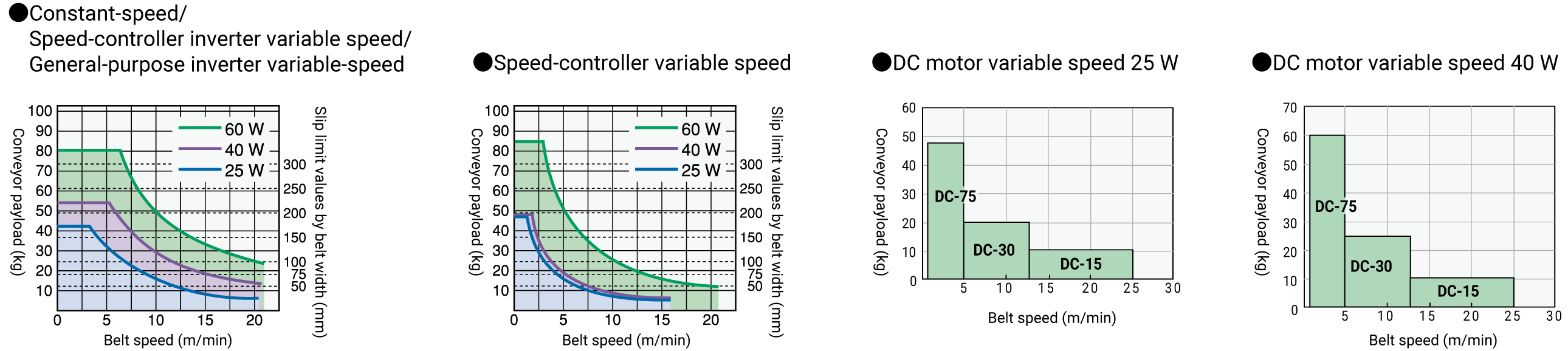

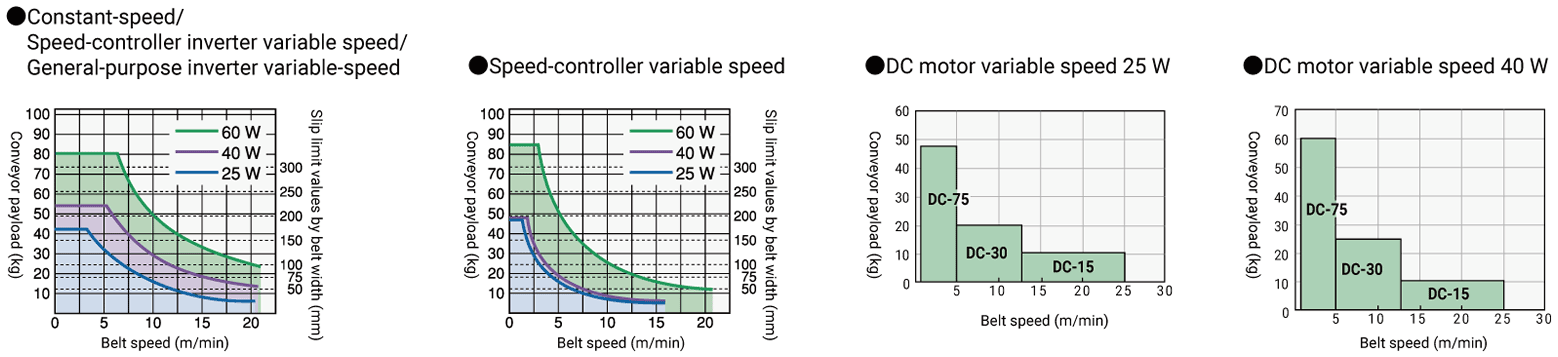

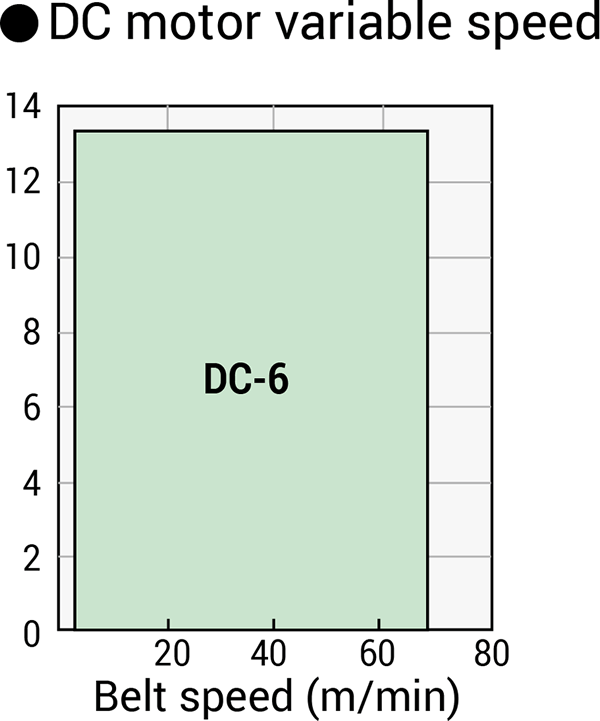

Conveyor payloads
Note:
For the drift-free (VG) type, use 50% of the graph values as the conveyor payload guideline figures.
Note:
Use 50% of the value for the standard type as the guideline value for the VG type's ,CF type's,VT type's conveyor payload.

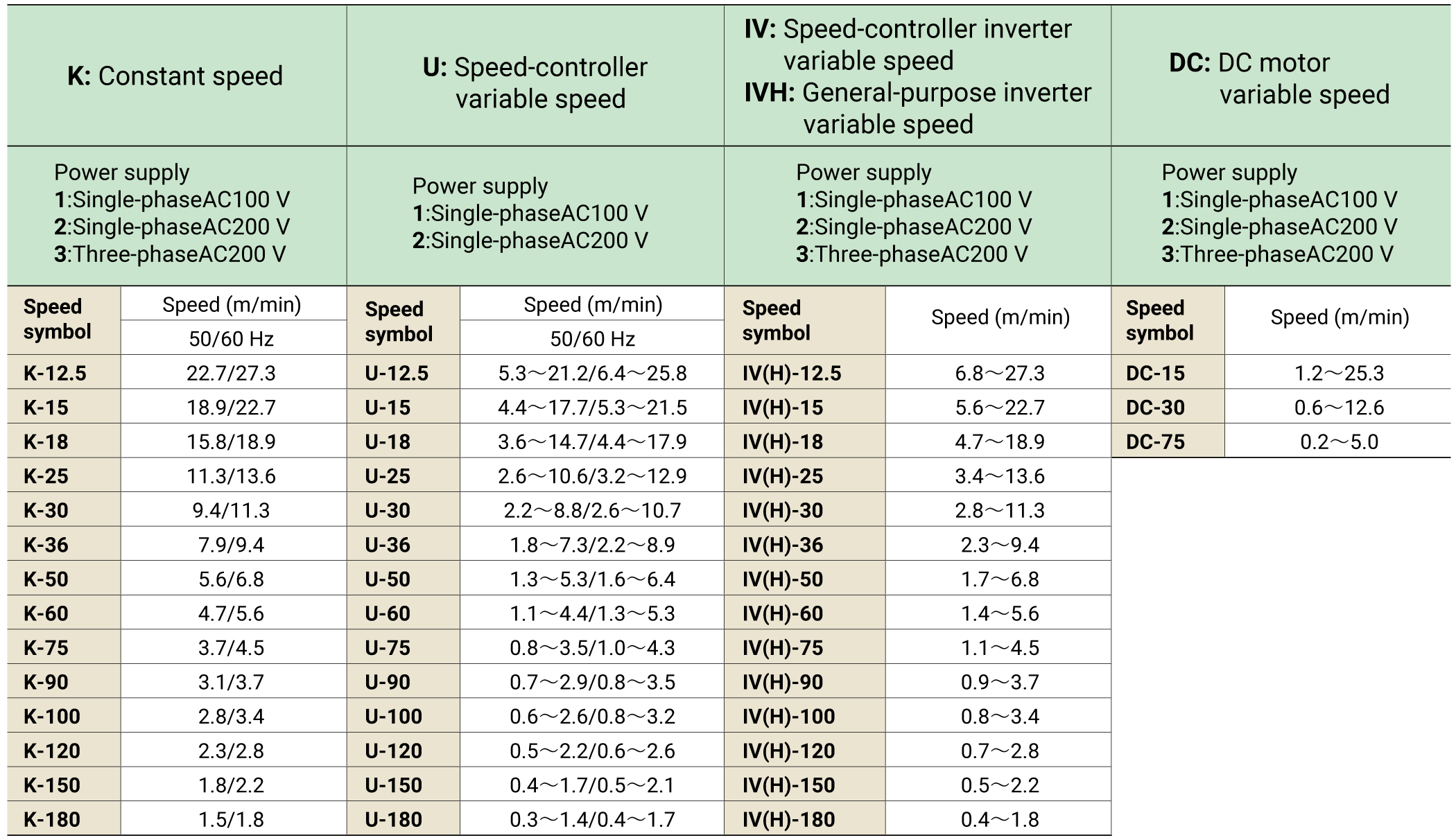

Power supplies and speeds
Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.
(3) The output for DC motor variable speed models is 25 or 40 W only.
(4) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

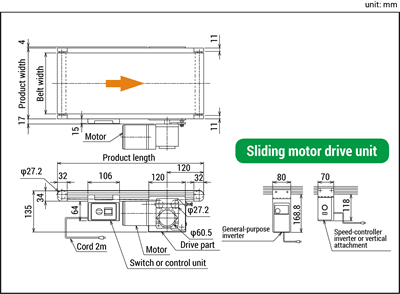

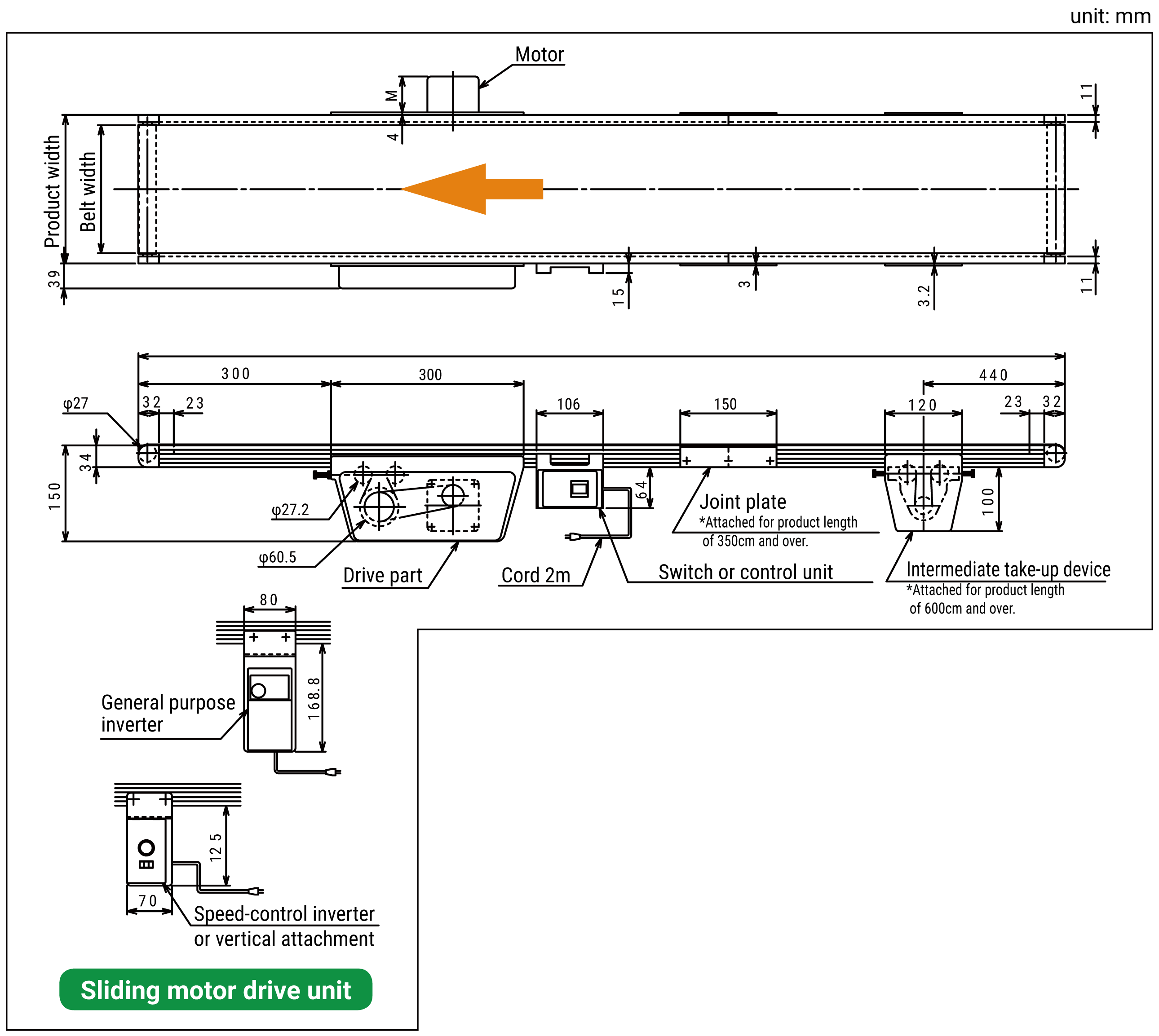

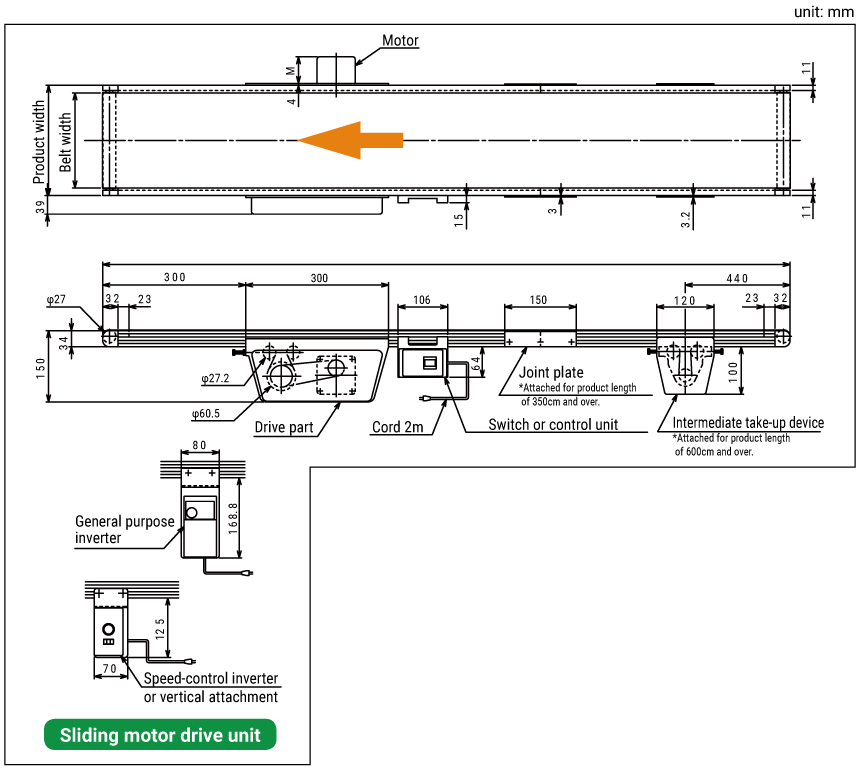

Dimensions

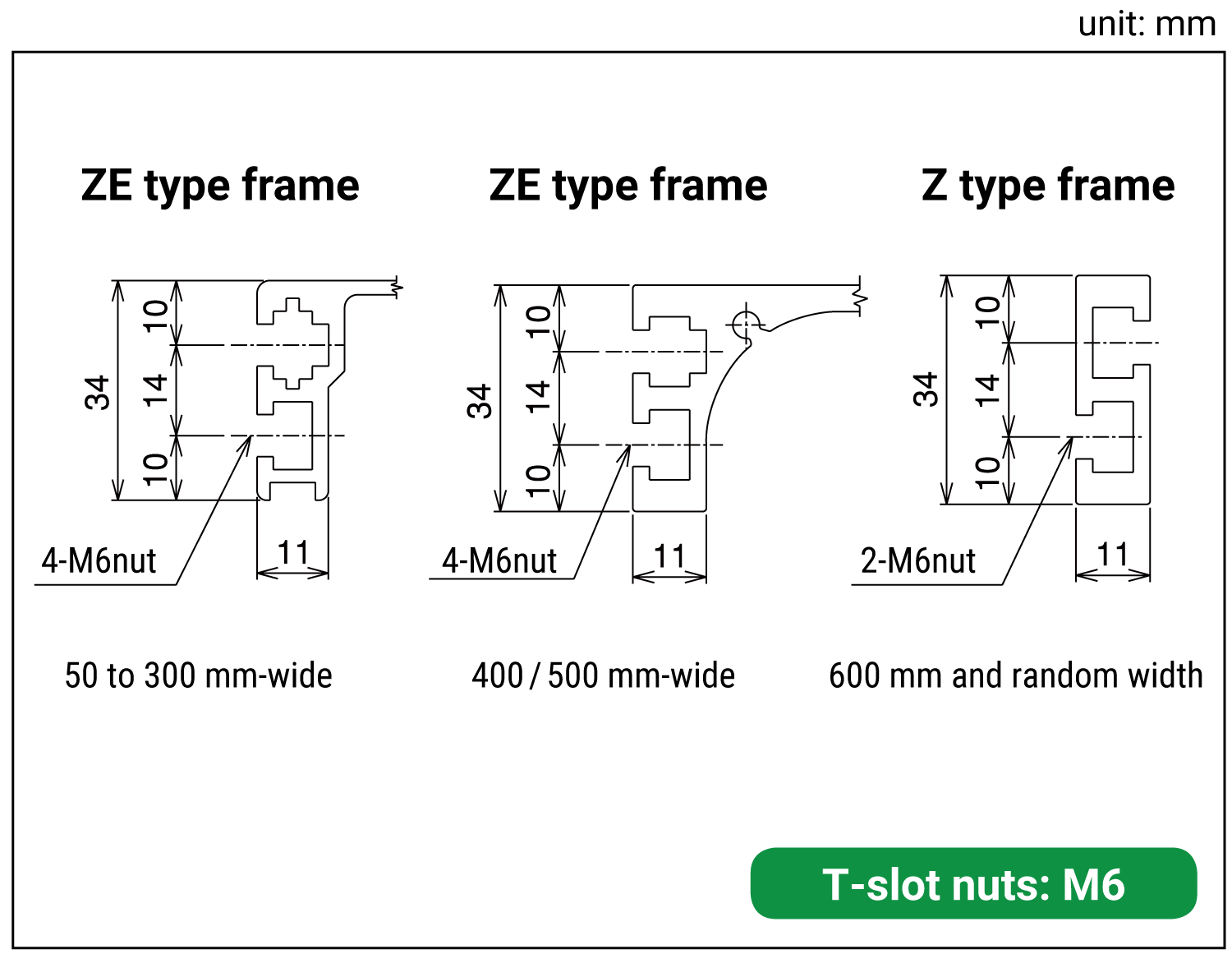

Frame Cross-section

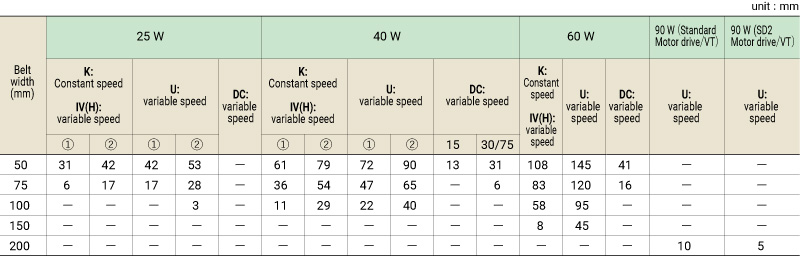

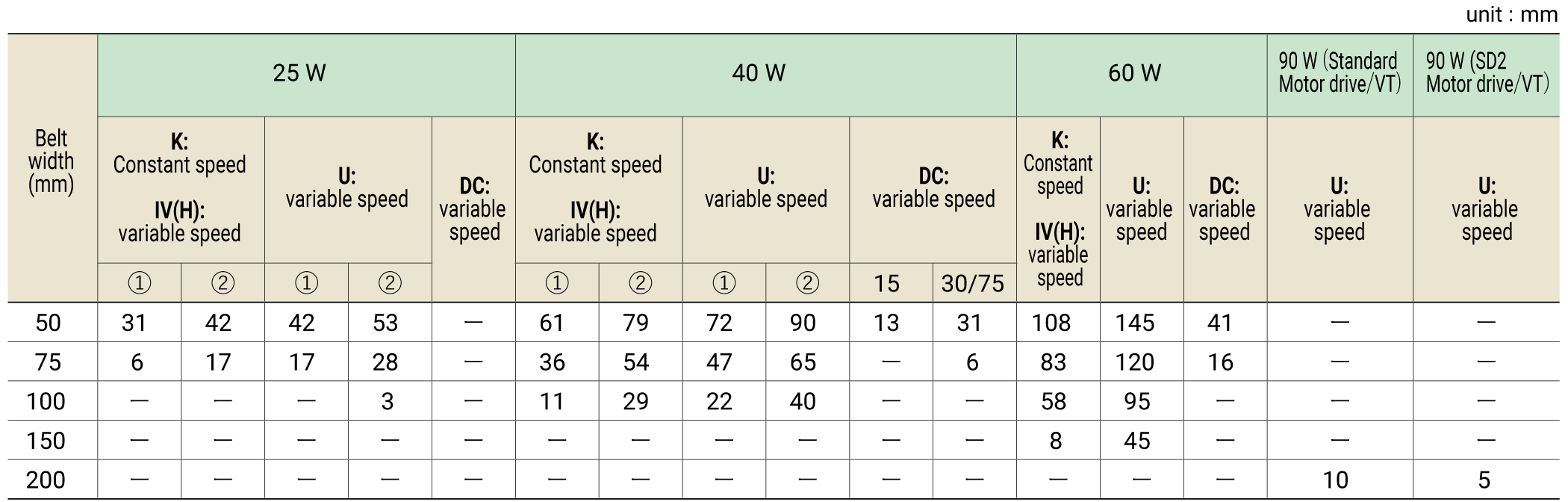

Motor projection dimension M (maximum value)
Note:
(1) "(1)" represents speed numbers 12.5 to 18, and "(2)" represents speed numbers 25 to 180.
(2) Each dimension shown is the maximum value among the motors available.(A:Sumitomo, O:Oriental, M:Panasonic)
Options
Type
The standard belt type is flat on both the front and back sides.
For standard type and VG type, it is possible to set a belt loosening device.
Non-meandering type (VG) which prevents meandering by attaching a crosspiece in the center at the back of the belt.
Various motive types(Specifications without description are the same as standard products.)

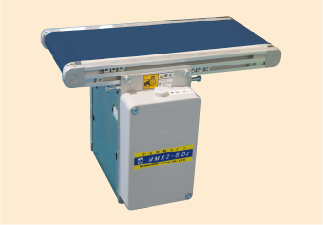

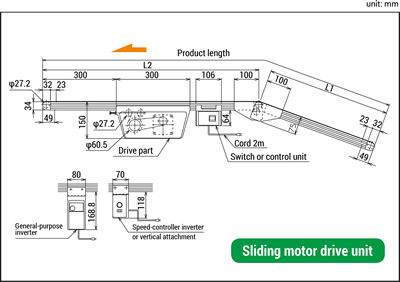

The motive part is the smallest possible size.
A shorter product length conveyor is possible.

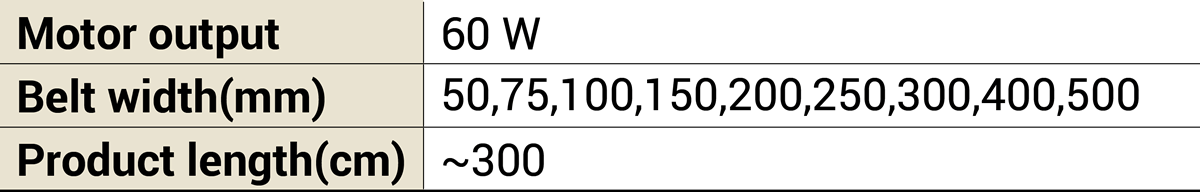

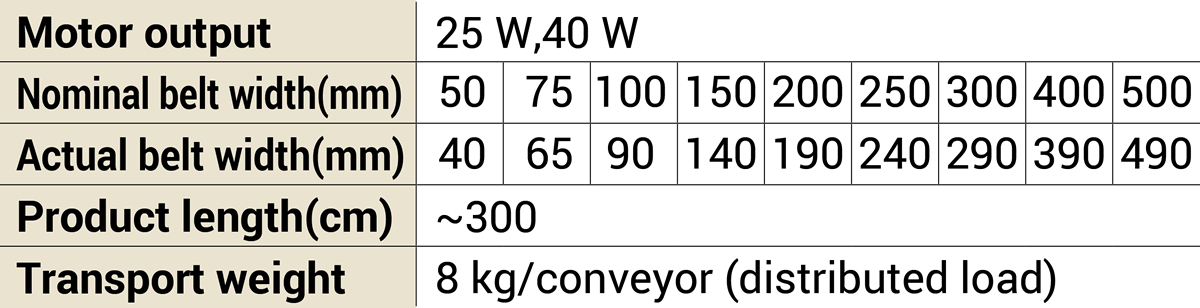

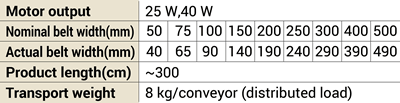

Specifications
It is possible to set the belt loosening device.

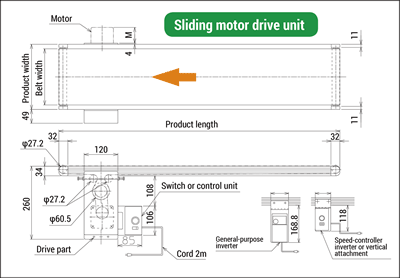

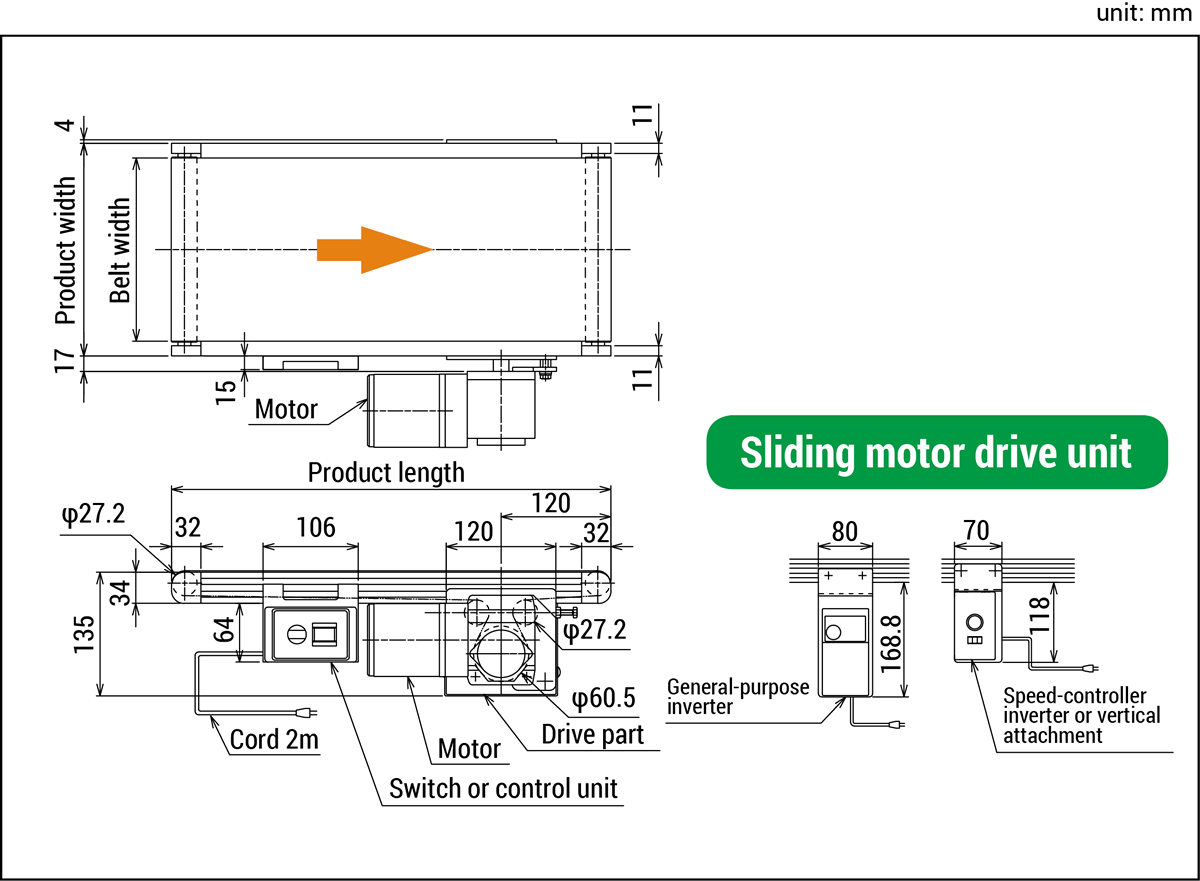

Dimensions
A conveyor with a short product length that uses a hollow shaft motor to reduce the product height.
Specifications
Motor symbol is O: Oriental only.
It is possible to set the belt loosening device.
Dimensions
Special type(Specifications without description are the same as standard products.)

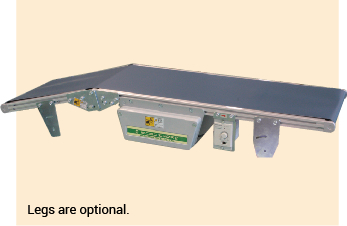

Transfer from a slope to horizontal and vice-versa without changing over using 1 machine.
The slope angle can be adjusted from 0 to 30°.
Specifications
Transport weight: Use the standard 50% as a guide.
If the slope is steep, a separate tilting belt is required.
It is possible to set the belt loosening device.

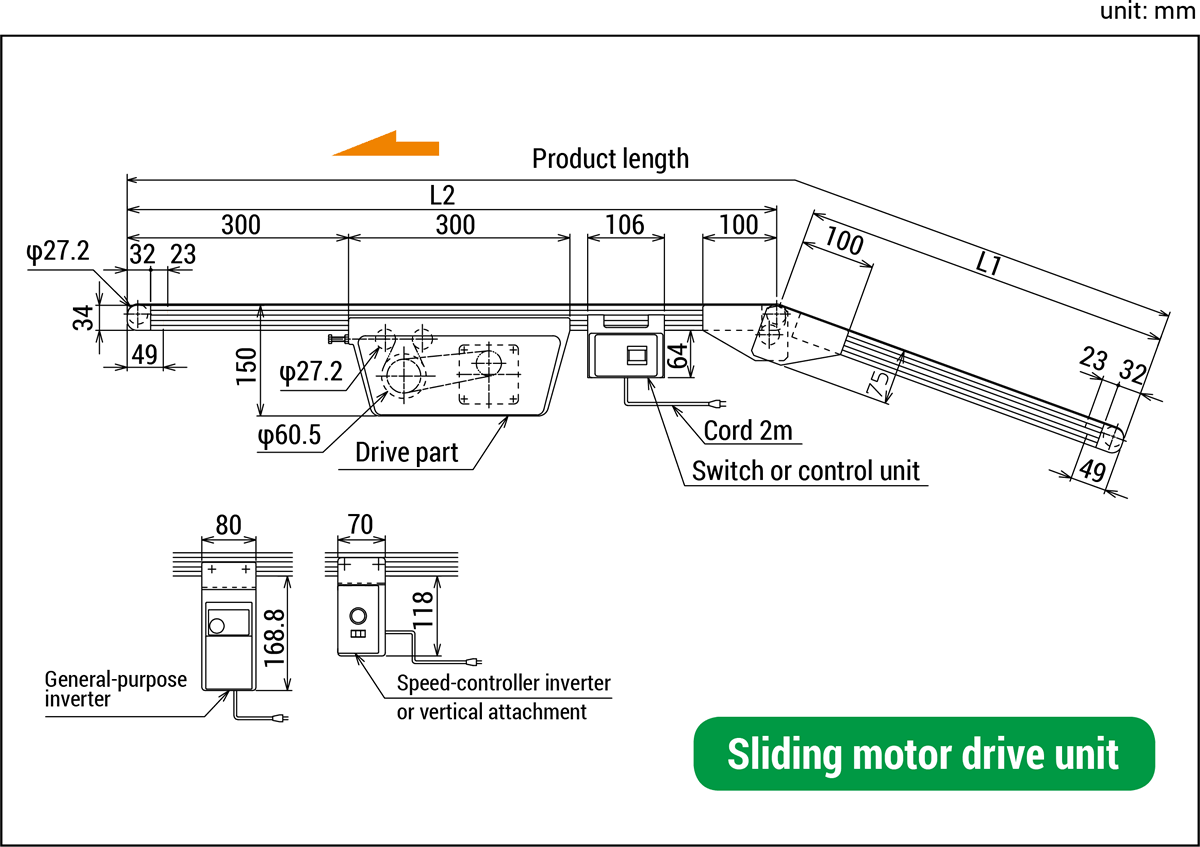

Dimensions

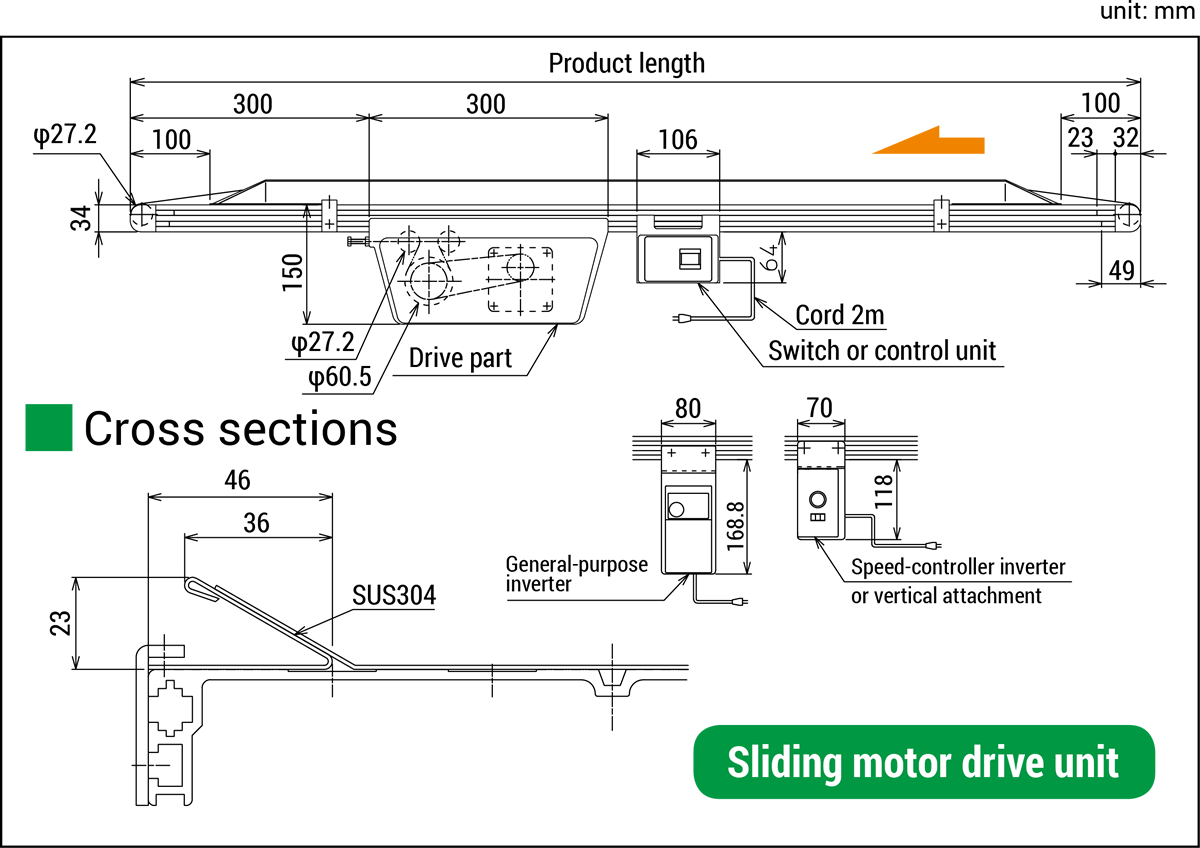

A V-shaped guide has been inserted into both sides of the belt to set the transfer surface in the bilge. Ideal for carrying loose objects.
Specifications
Transport weight: Use the standard 50% as a guide.
Dimensions
High speed operation (additional function) (Specifications without description are the same as standard products.)
Parts compatible with high-speed operation are used.
The external dimensions are the same as the standard type.

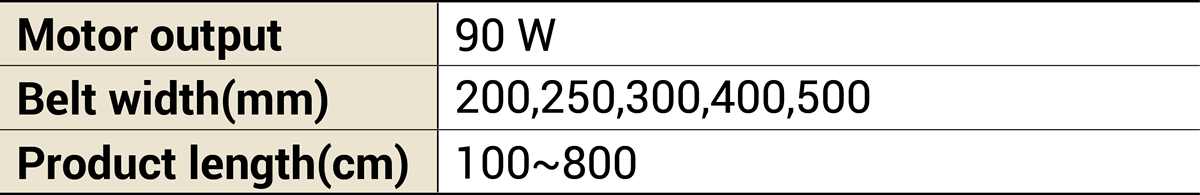

Specifications
The minimum product length is the minimum product length of each type.
Cannot be set with either the upper horizontal type (CF) or V-trough type (VT).
Cannot be used for 24-hour continuous operation.

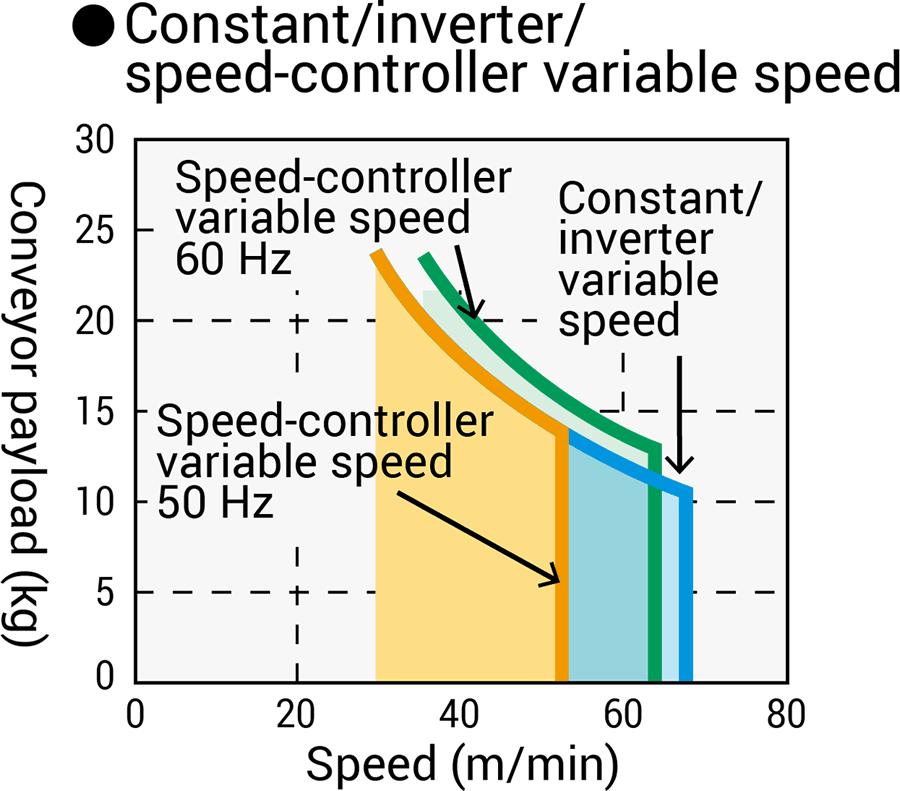

Conveyor payloads
Note:
The speed controller shift is the value at the maximum speed of each speed symbol. When the transfer speed is lowered, the transport weight decreases, and at the maximum speed of 1/4,the transport weight drops to 50% of the value at the maximum speed.

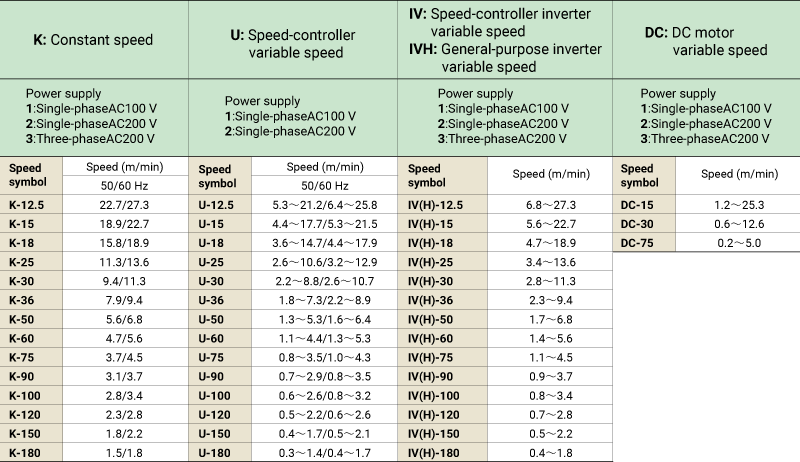

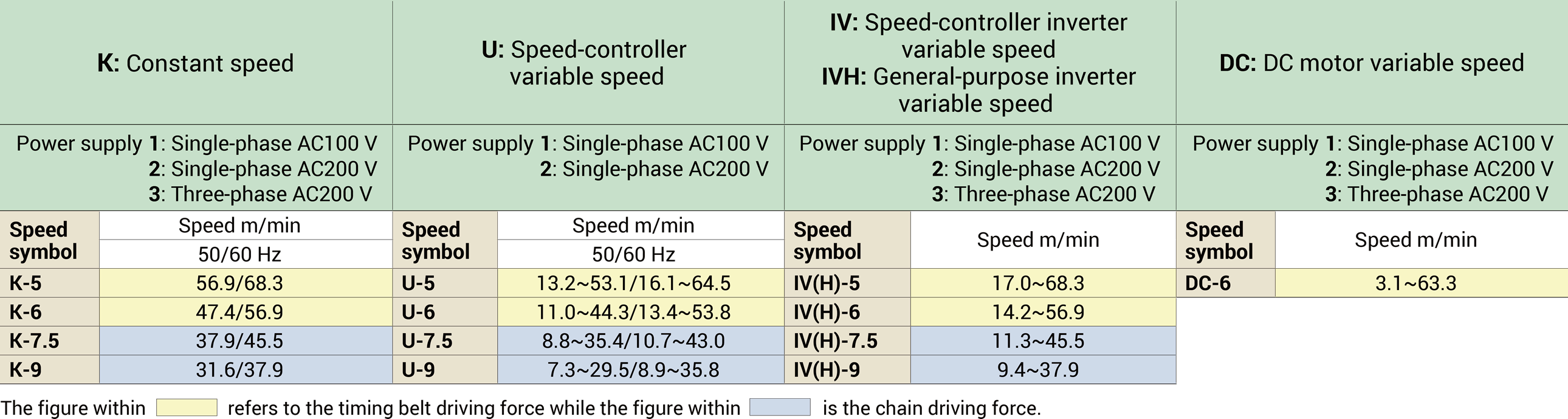

Power supplies and speeds

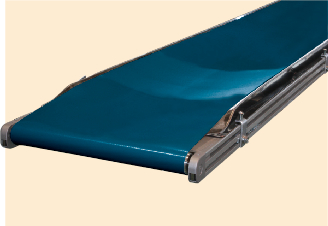

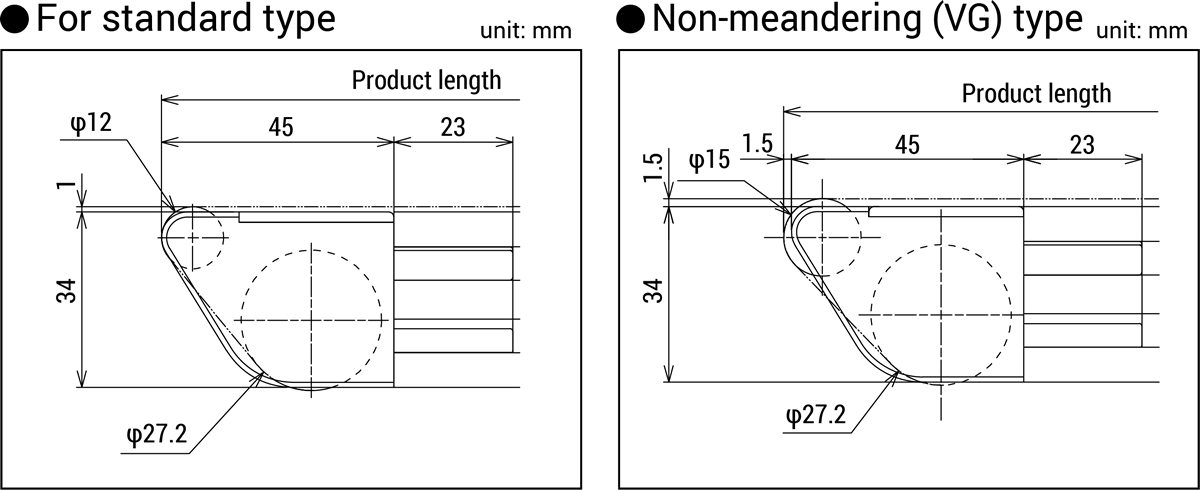

Small transported objects can also be transferred smoothly because small rollers of diameter φ12 (non-meandering (VG) type has a diameter of φ15) are used at the end of the tail

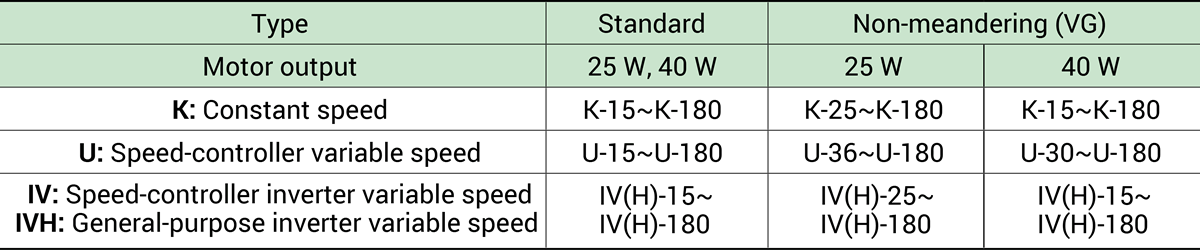

Conformance speed (Speed No.)

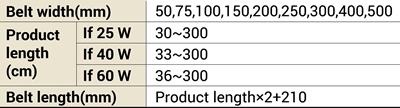

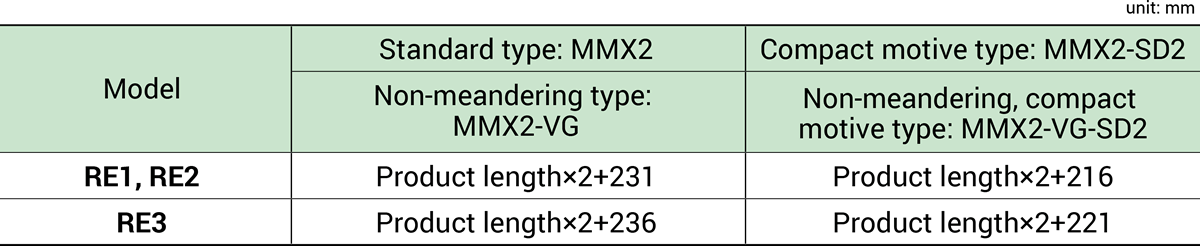

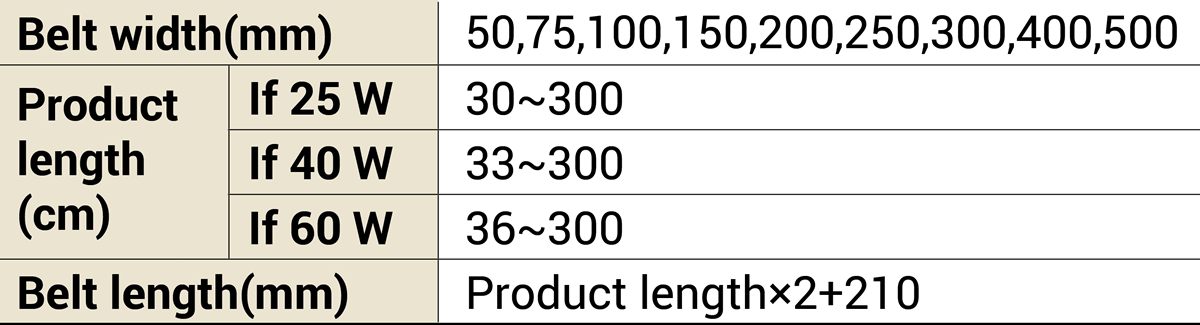

Belt length table

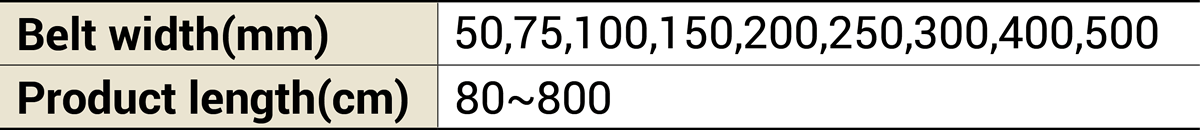

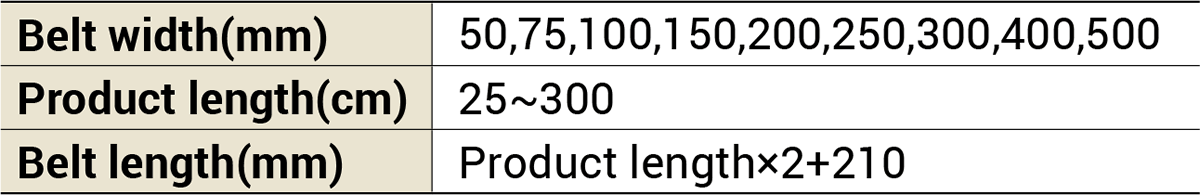

Specifications
The minimum product length is the minimum product length of each type.

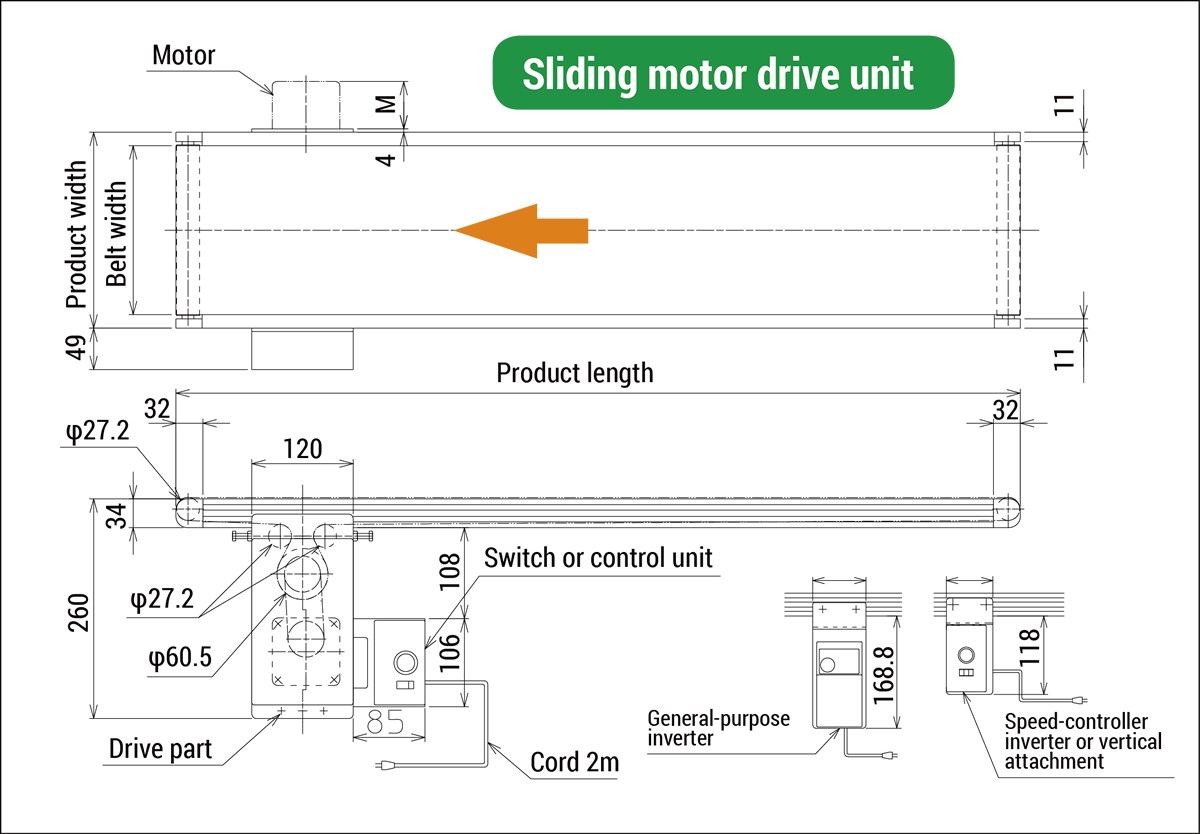

Dimensions

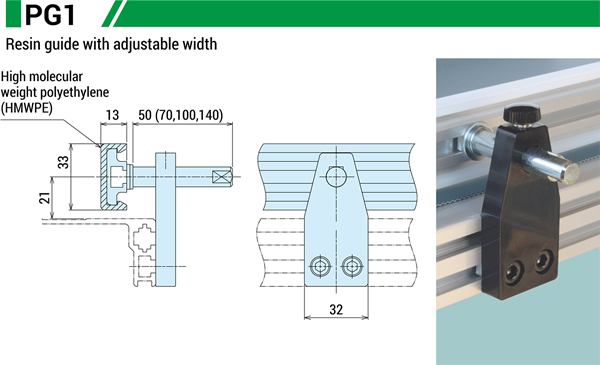

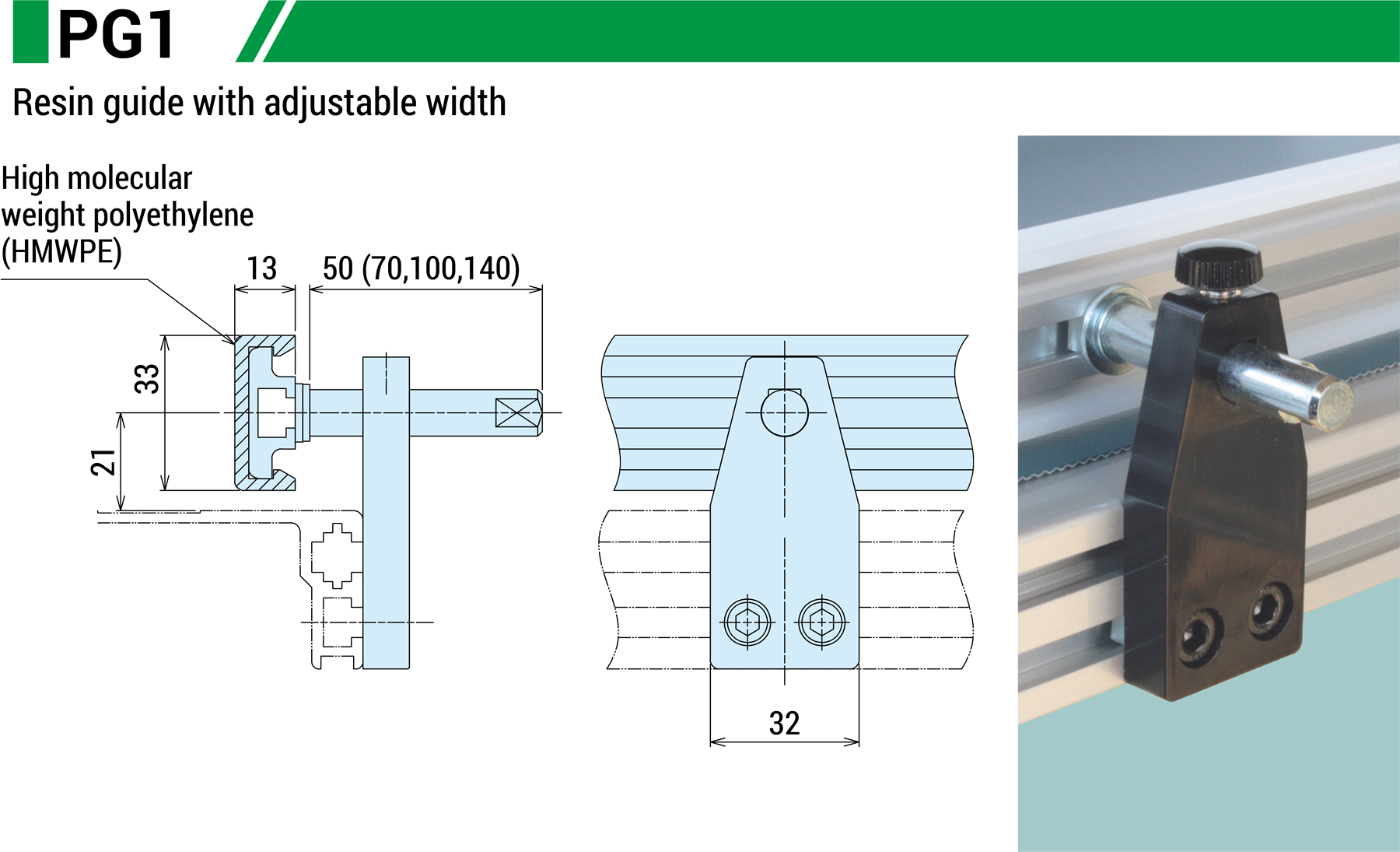

Option(Guide)

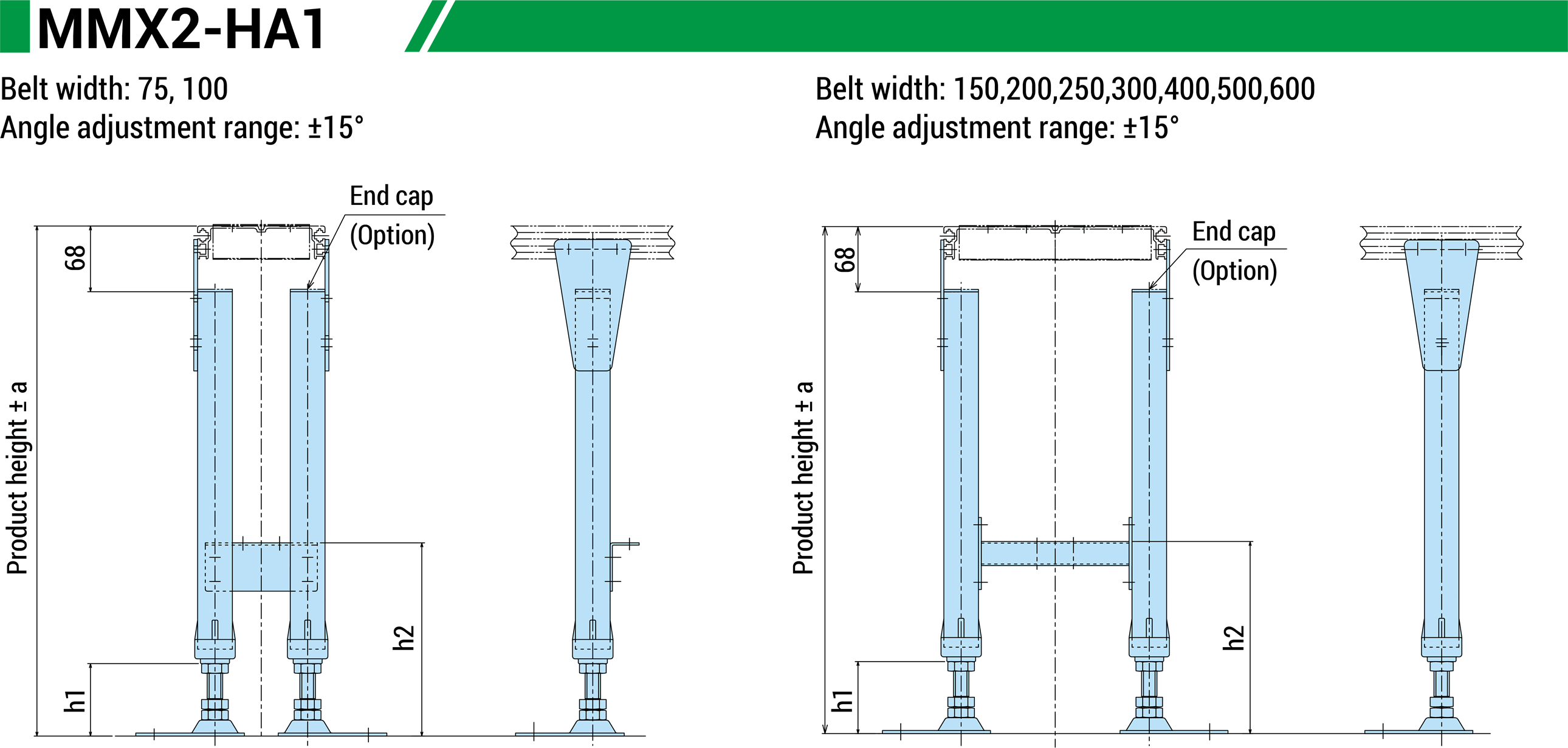

Option(Leg)
