MTV

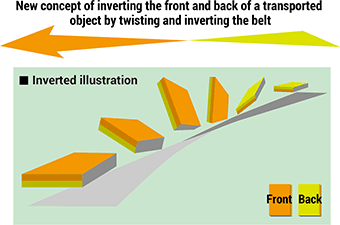

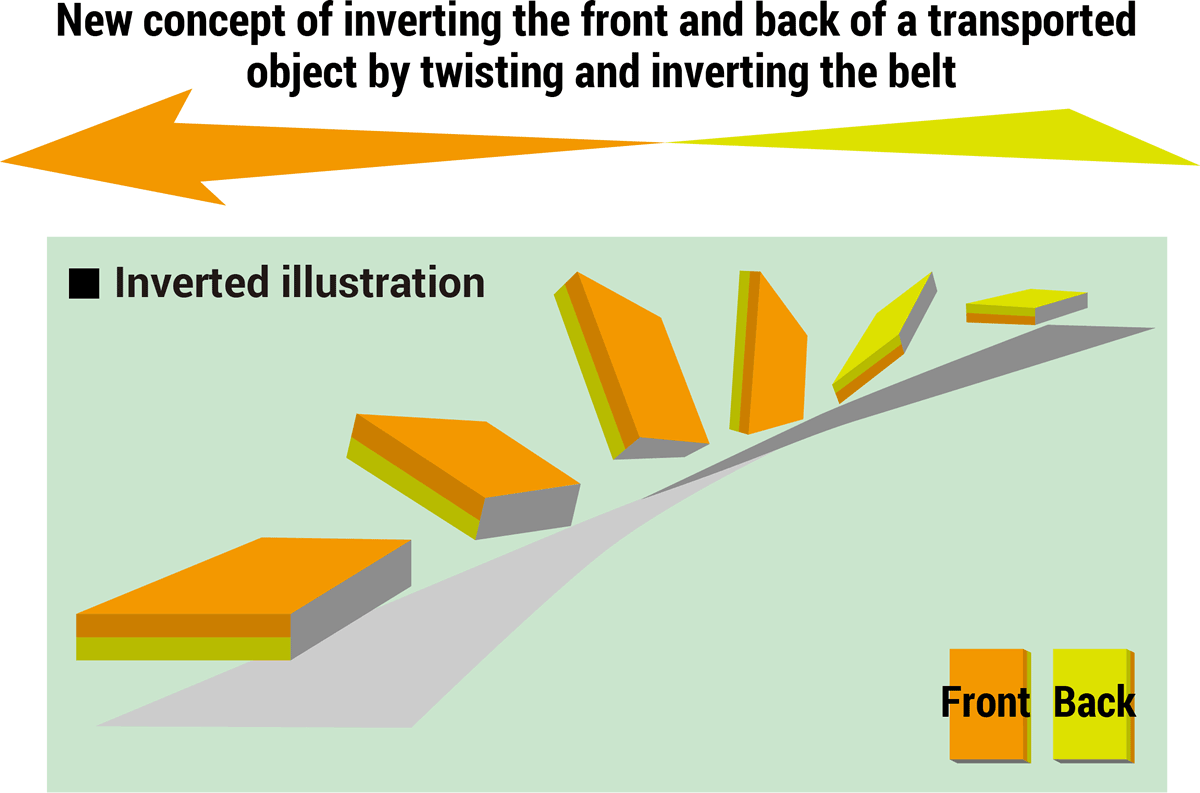

A new concept of twisting the conveyor belt.
Overview

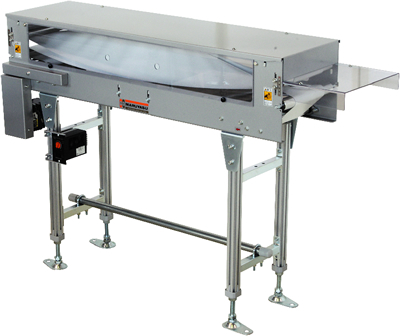

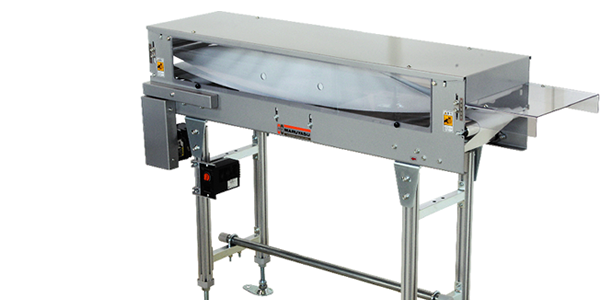

Product appearance

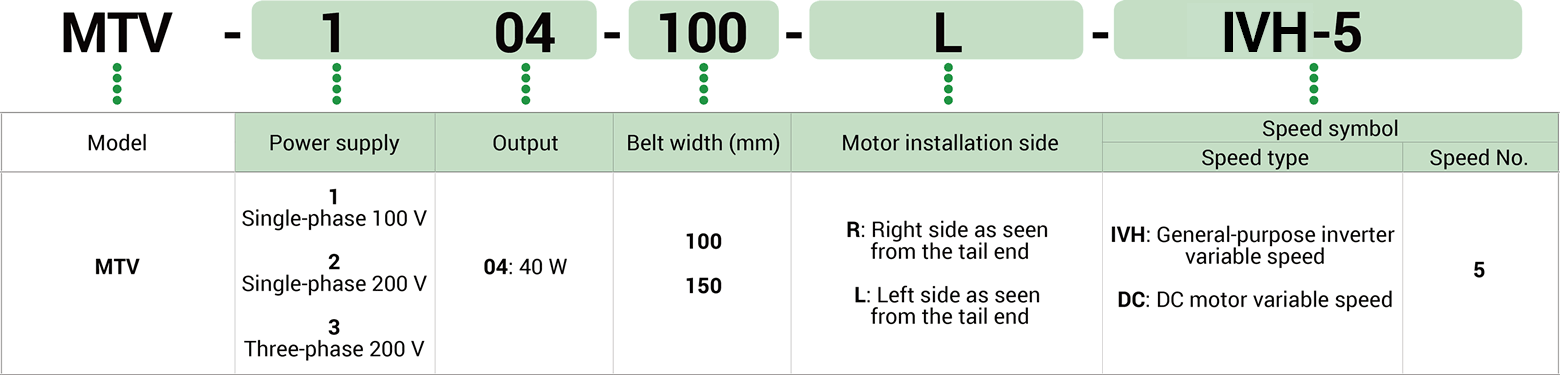

Key to model number designations

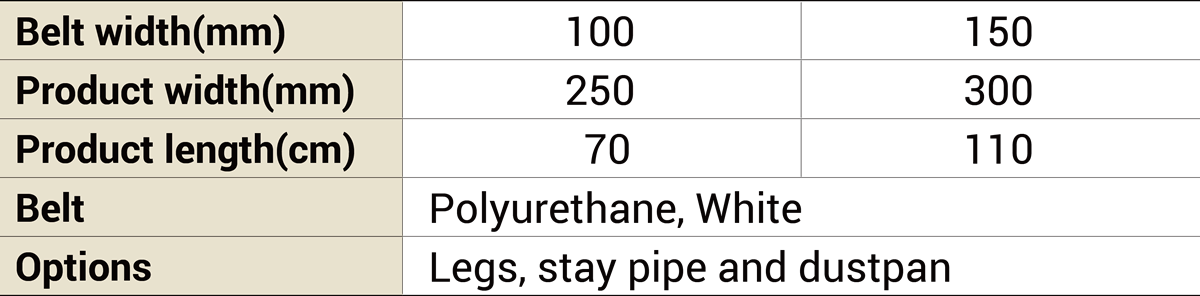

Specifications

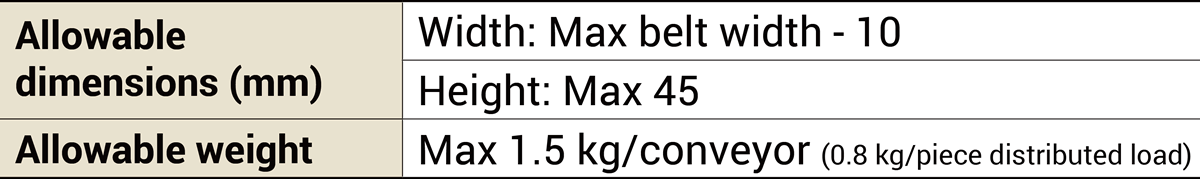

Transported objects

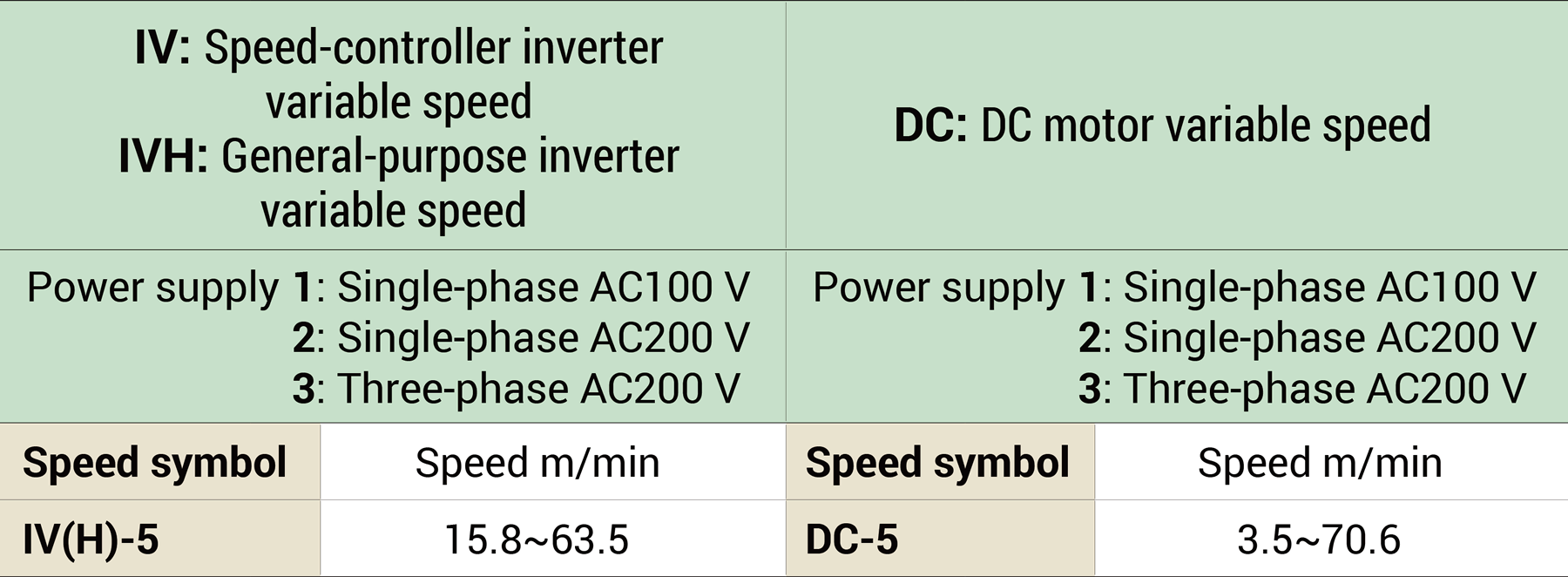

Power supplies and speeds
Note:
(1) The speed of the inverter shift may vary by a maximum of about -10% compared to the speed chart,
depending on the characteristics of the motor and the load.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown,
depending on the motor characteristics and payload.

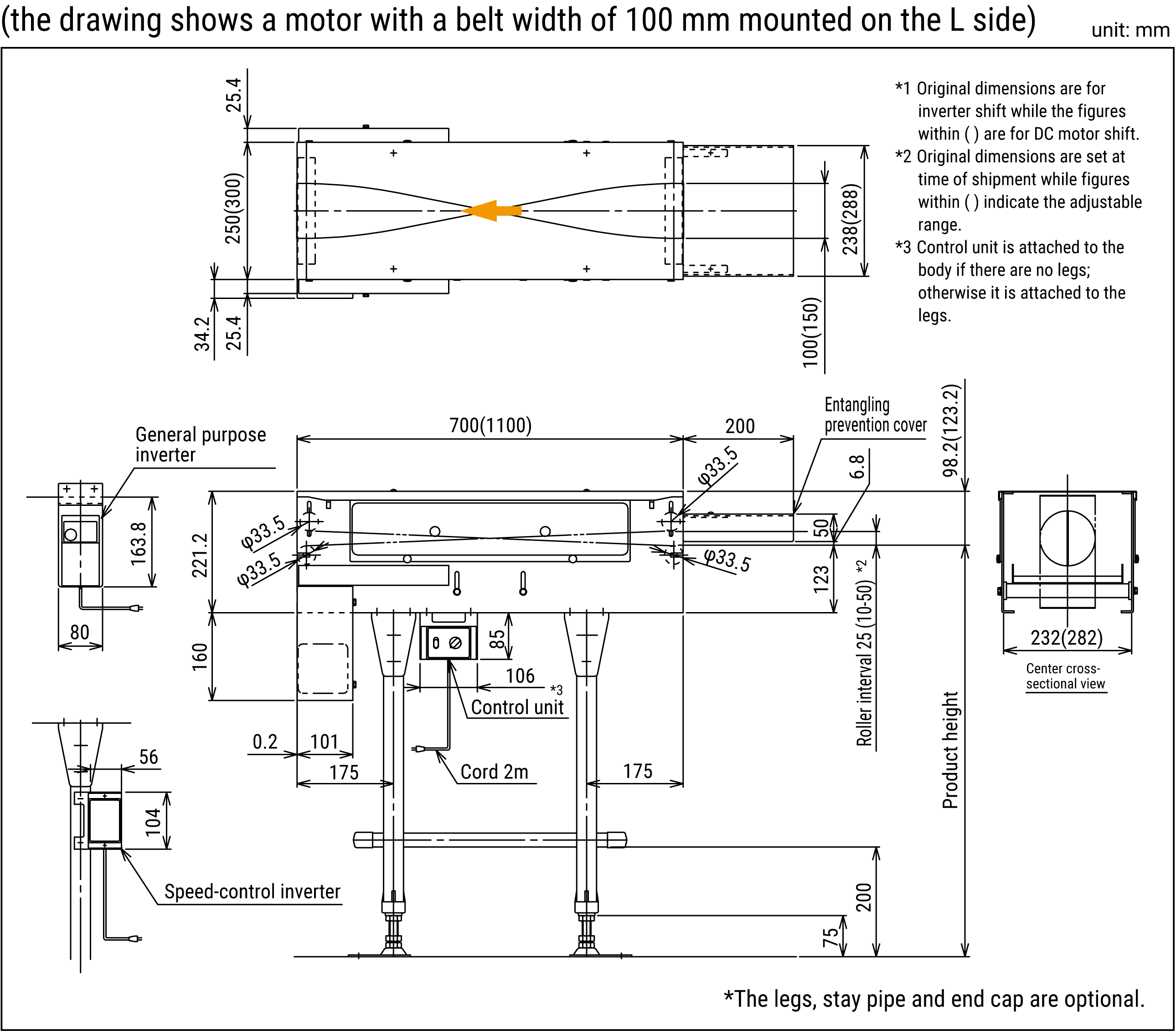

Dimensions

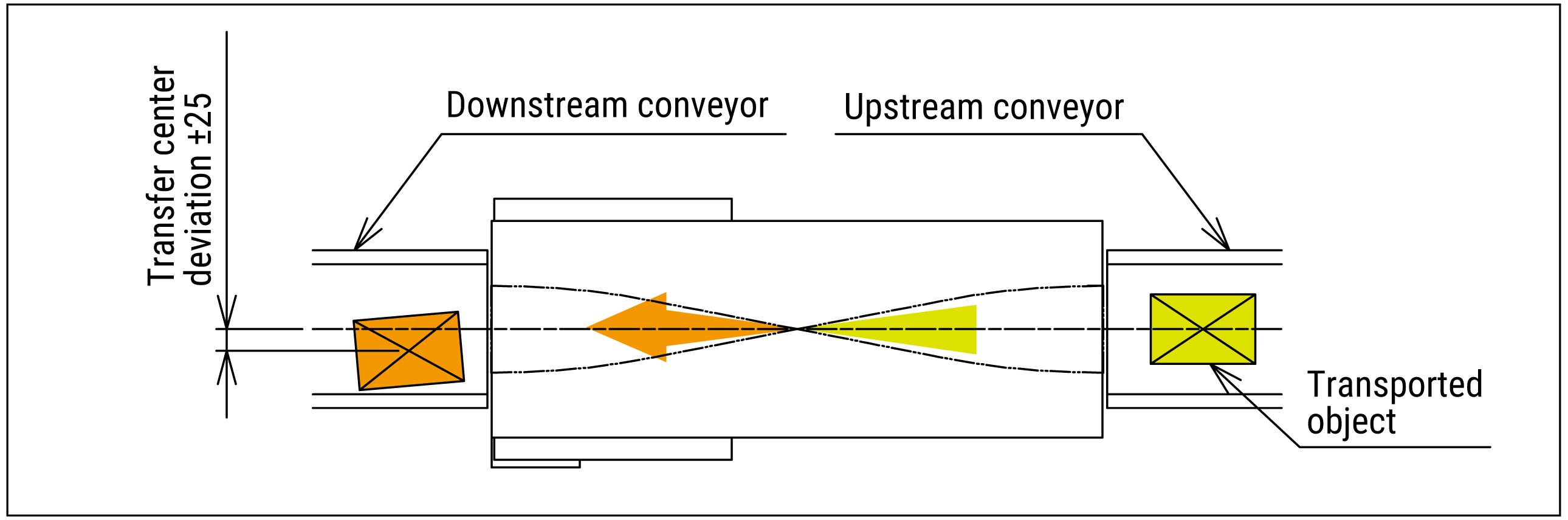

Posture after transfer
A twist conveyor may result in the center of the transported object shifting about 25 mm to the left or right during transport, or the posture of the transported object becoming slanted at the exit of the conveyor because of the twisting and inversion motion.
Therefore, a downstream conveyor should be installed with a belt that is 50 mm wider than the transported items.

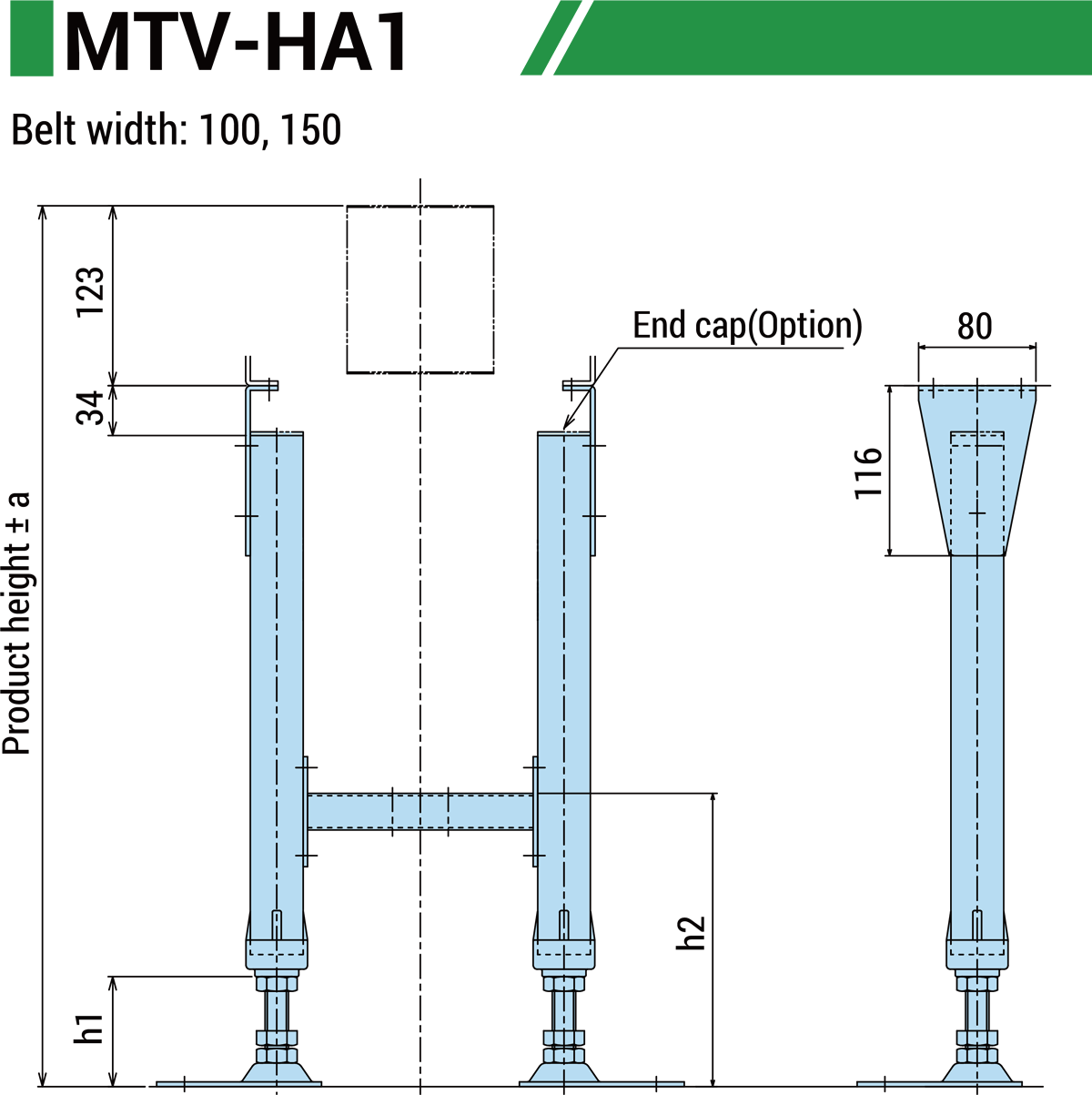

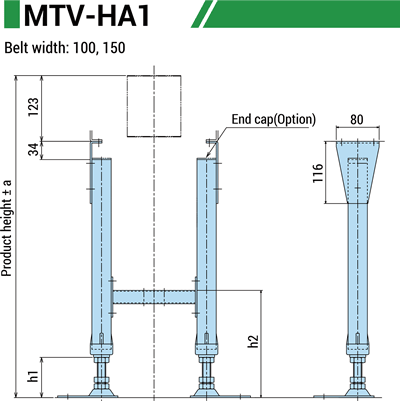

Option(Leg)
