SL
Connecting conveyor between processes & performing intermittent operation.
Overview

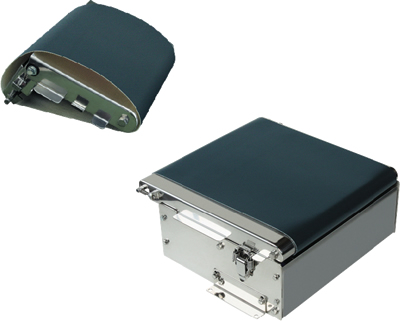

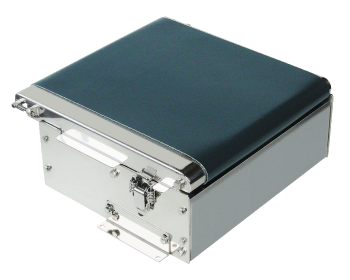

Product appearance

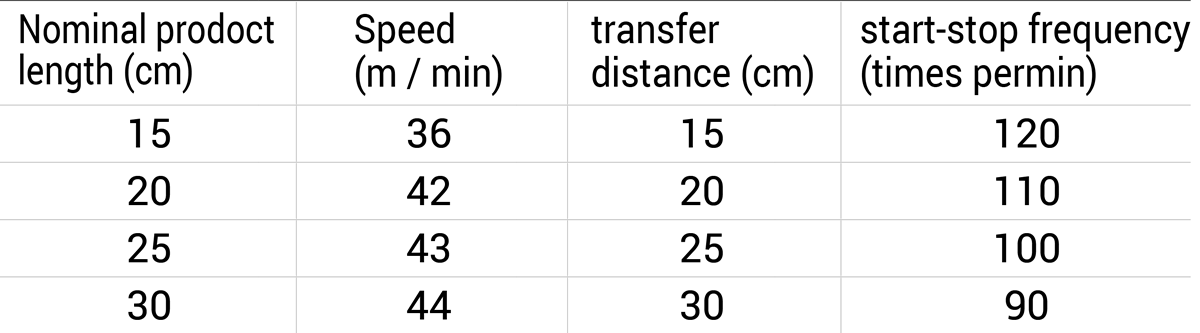

Start-stop frequency
max 120 times per min
Note:
(1) The conditions above serve as operating limits.
(2) Depending on the operating conditions, there is a possibility that some specifications may not be fulfilled.
Consult our sales representative when ordering.

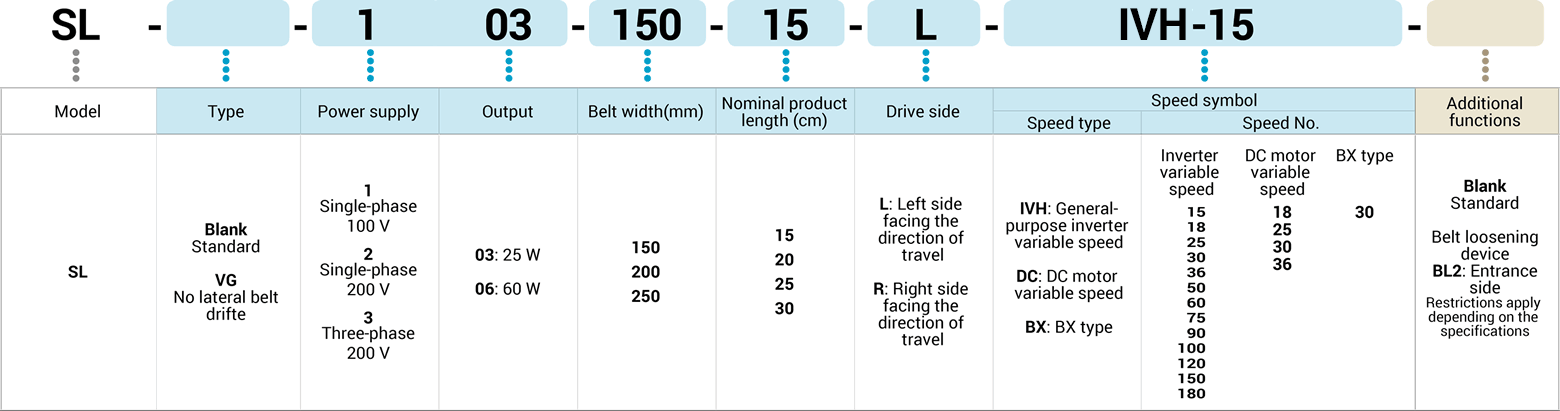

Key to model number designations

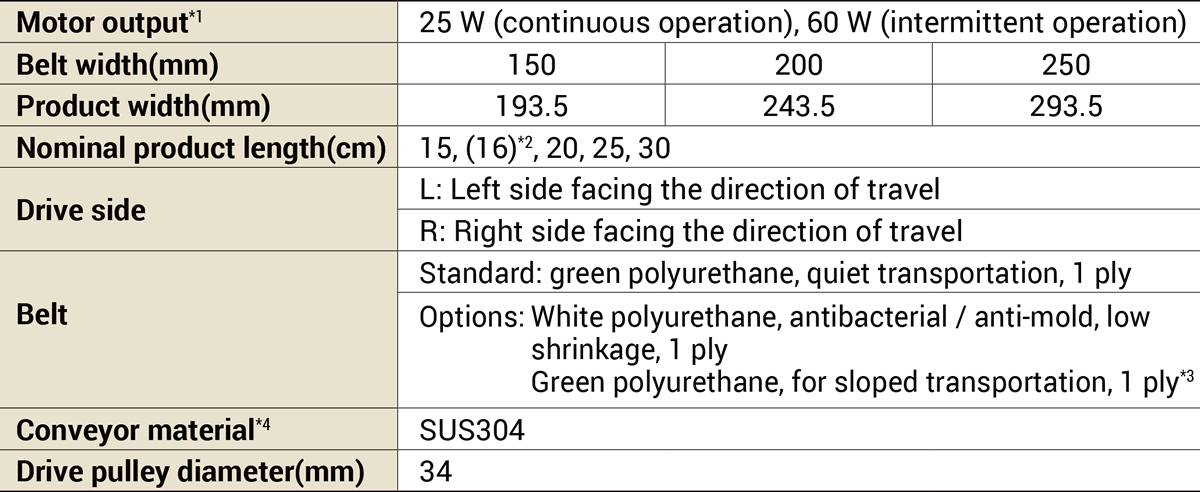

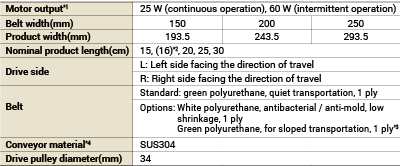

Specifications
Note:
*1 25 W (continuous operation) is set for inverter or DC motor shift, while 60 W (intermittent operation) is set for the BX motor only.
*2 For VG type and BL2, the minimum product length is 16 cm.
*3 Belt for sloped transport cannot be set for the VG type.
*4 Clean the machine by wiping with a damp cloth as it is not waterproof.
Belt length
Belt length: Nominal product length ×2+34 mm
Transport weight
Transport weight:1 kg/unit (continuous operation),
0.5 kg/unit (intermittent operation)

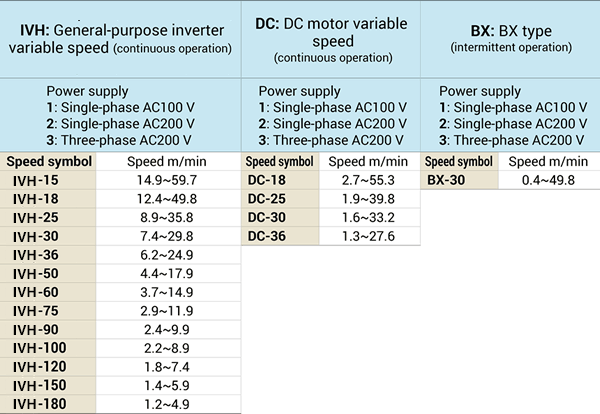

Power supplies and speeds
Note:
(1) Speeds of Speed-controller inverter variable speed models may vary by up to 10% more or less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.

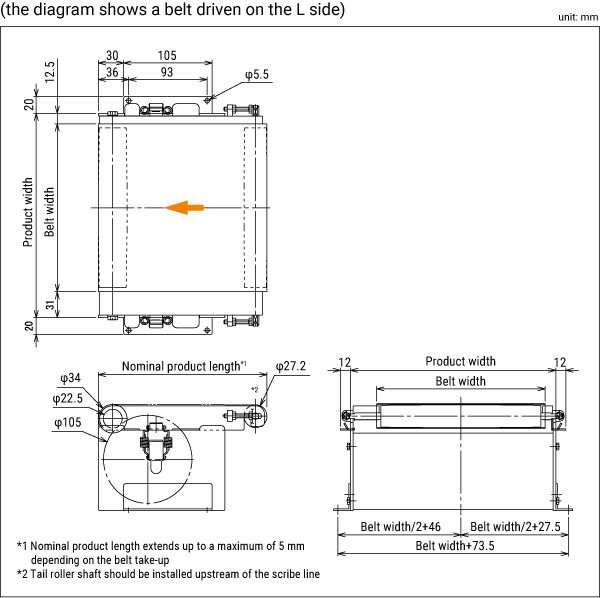

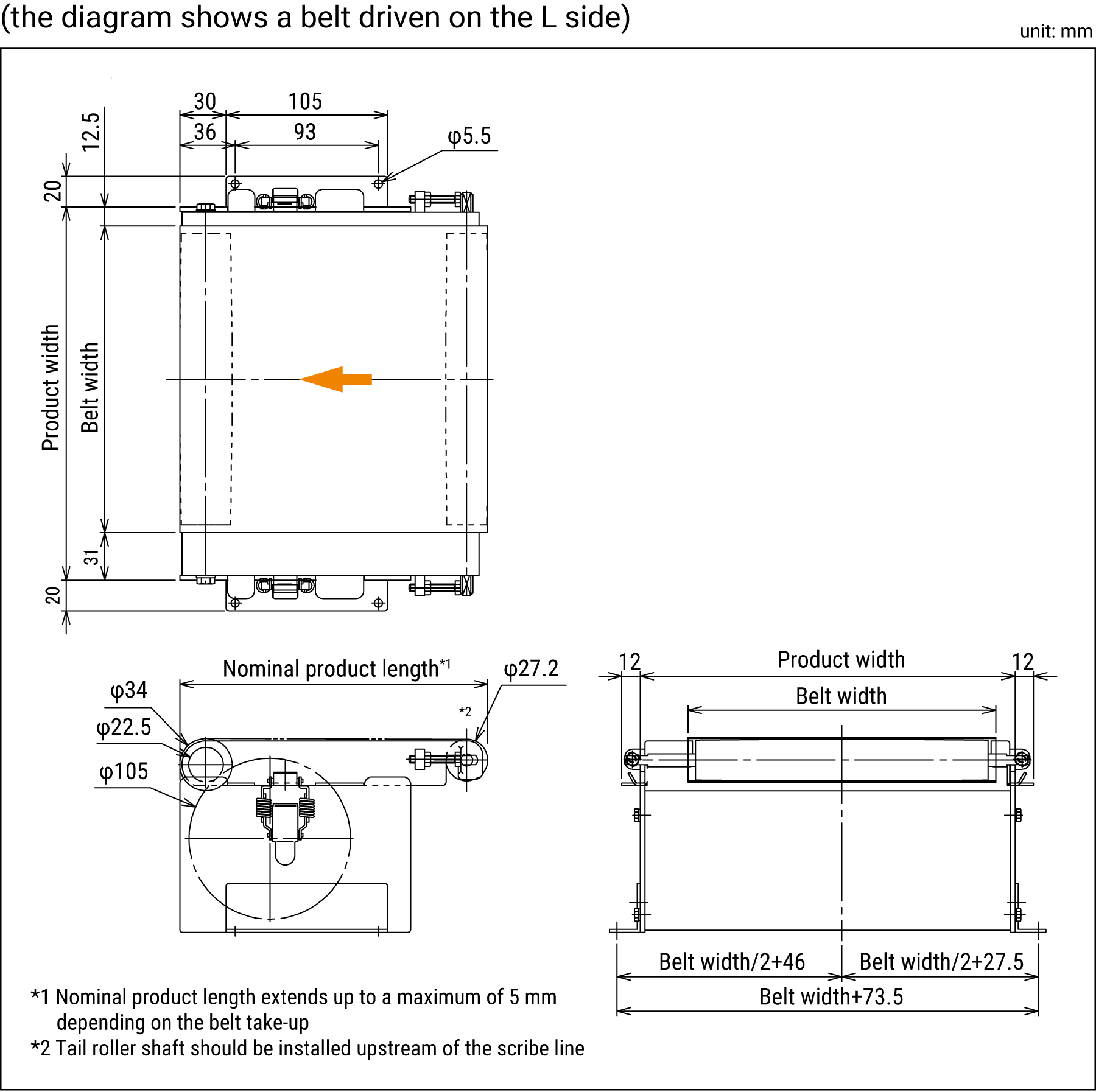

Dimensions
